Tube Laser Cutting Machine

The special pipe laser cutting machine consists of 7 axes.
It can cut various types of pipes such as round, square, rectangular, and oval tubes, with a machine length ranging from 1 to 11 meters.
The machine enables one-time molding of 6-meter pipes.
Equipped with a feed shaft and traction shaft, the equipment significantly minimizes processing waste.
It can cut multiple pipes in different directions and diameters, as well as groove surfaces at variable angles.
ACLPRESS is renowned as an industry expert in pipe cutting.

Inquiry

Features
Details
Specifications
Inquiry
Related Products

ACLPRESS Laser cutting machine has a stable performance and high precision, using a German brand reducer to ensure that the machine starts and stops at a high speed, and a double drive rack and pinion transmission system to guarantee performance. All electrical components and lasers are housed in the control cabinet, with excellent dust-proof design to enhance the life of the electrical components. The outside of the control cabinet is equipped with an air conditioner with automatic constant temperature to prevent damage to the components in summer.

Laser Cutting Head

Three protective lenses efficiently protect the collimating and focusing lenses. Bidirectional optical water cooling efficiently extends the continuous working time.
No manual focusing is required as the software automatically adjusts the focusing lens, simplifying the operation and making it ten times faster than manual speed.
Various stable qualified brands of laser heads are available for ACL laser.

France MOTOREDUCER

Stable operation
Low noise
Large output torque
High speed ratio

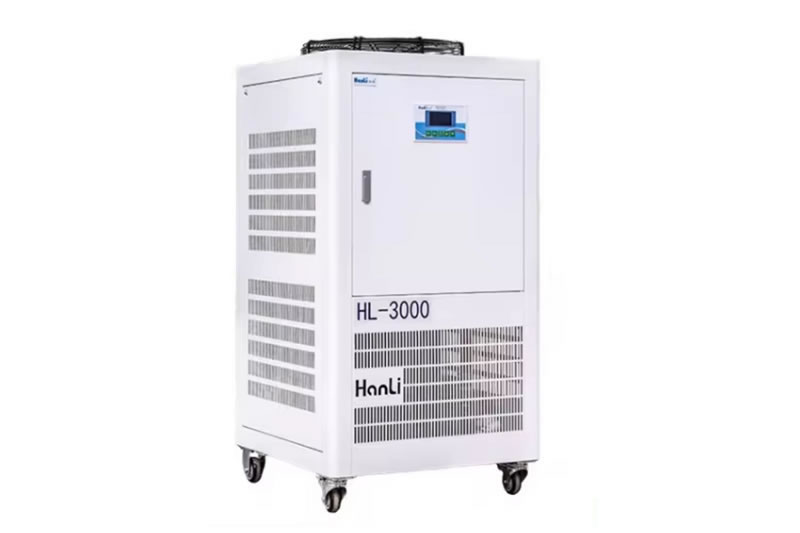

Hanli brand Industrial chiller

Hanli Water Chiller

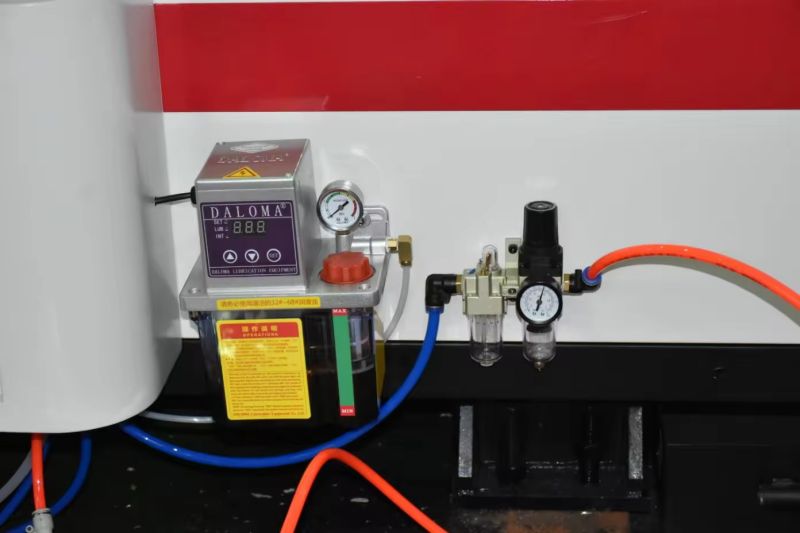

Auto Lubrication System

Keep the guide rail and rack lubricating during machine running for X-axis, Y-axis, and Z-axis.
Free of maintenance during high-speed cutting.

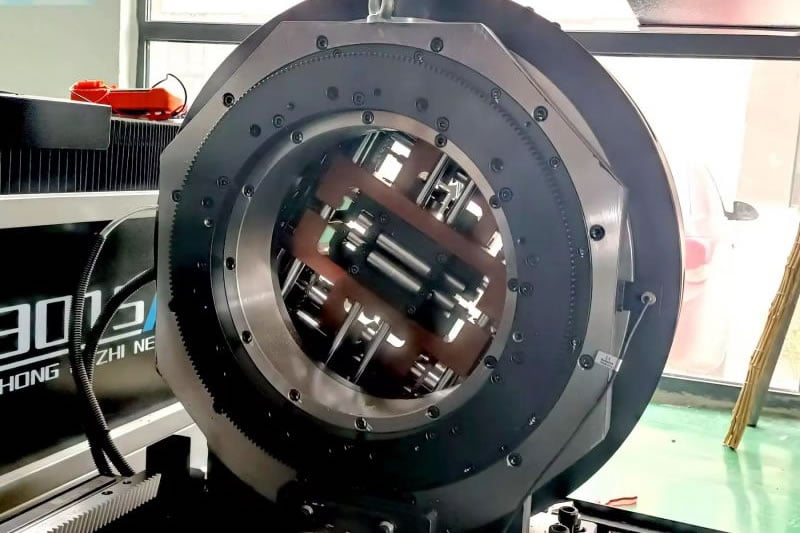

Automatic Pneumatic Chuck

The pneumatic chucks are 3 times faster than electric chucks due to one-key clamping and auto-centering. With large and constant clamping force, heavy tubes will be clamping stably. Two rows of rollers are adopted for a wide range of clamping and high-cutting precision.

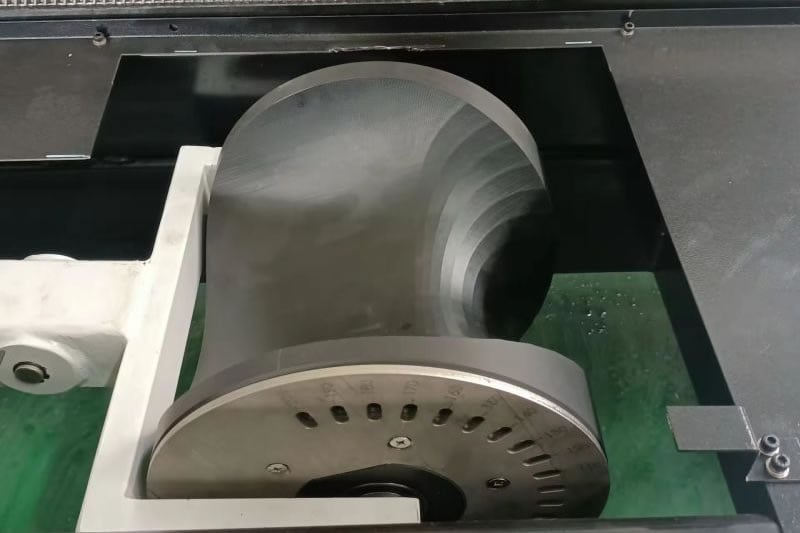

Segmented Automatic Support

The intelligent pipe support design solves the problem of deformation during the cutting operation of long pipes.

Great Brand Fiber Laser

MAX & Raycus & IPG Brand Laser Source.
Higher electro-optical conversion efficiency, excellent reliability, modularity, easy maintenance, and low, and high reflection resistance.
It adopts an air-cooled compact structure design with a semiconductor fiber as the laser generation medium, which is environmentally friendly. The mechanical structure is simple, and the optical path is constant, requiring almost no maintenance, and ensuring stable cutting performance.

Cypcut or Beckhoff Laser Cutting System

CYP-CUT is user-friendly, offering various file editing functions, remote control support, real-time alarm, and protection.
The intelligent visual control system makes it easier to understand the operation interface, allowing for intuitive adjustments to laser power, gas type, and pressure. Additionally, intelligent edge finding enables automatic positioning, making efficient production easy to achieve.

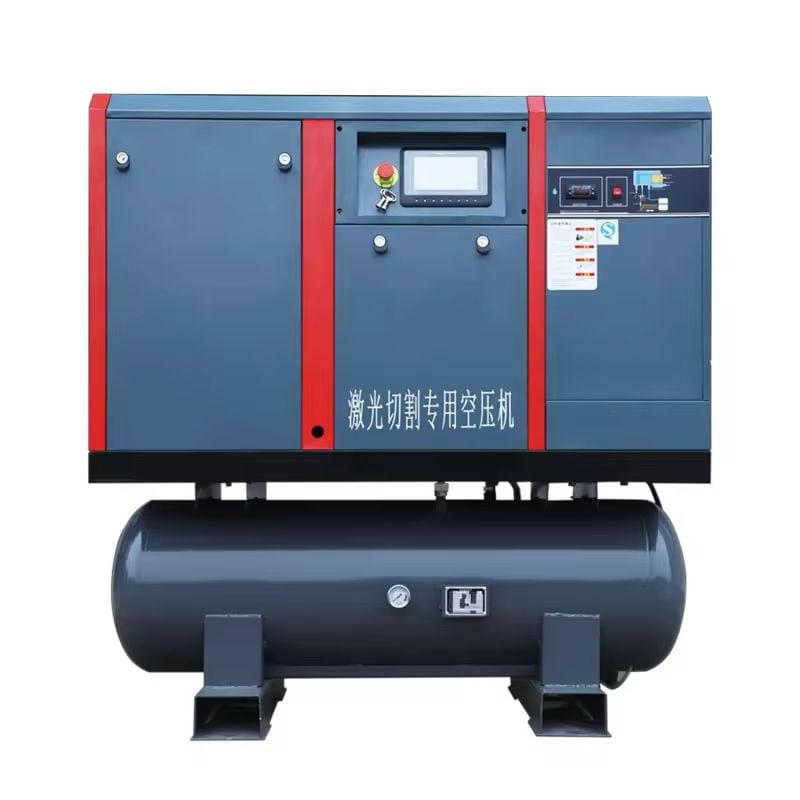

Air Compressor(Optional）

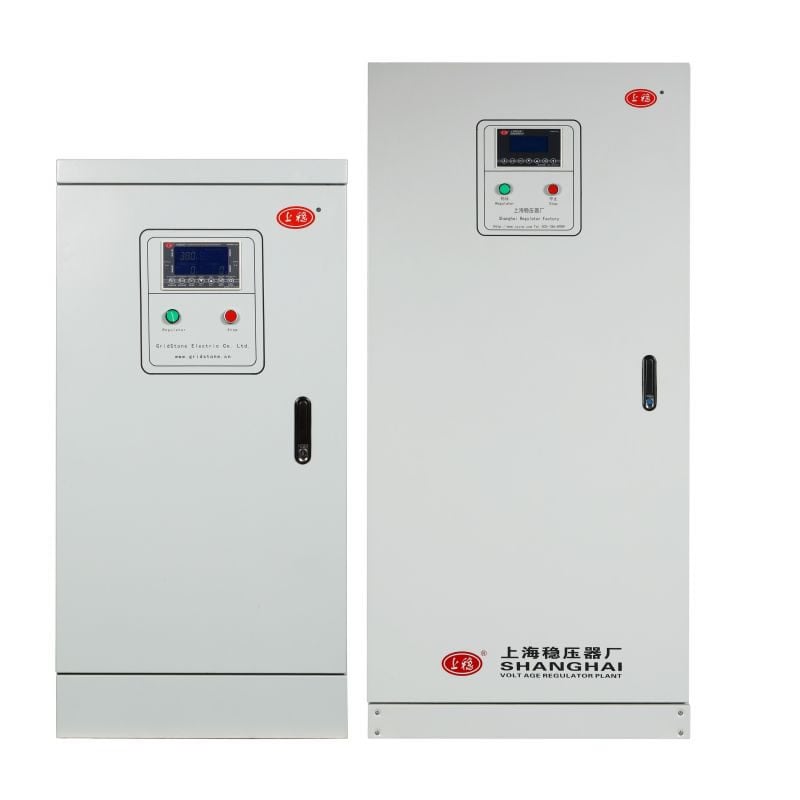

Volatge Regulator(Optional)

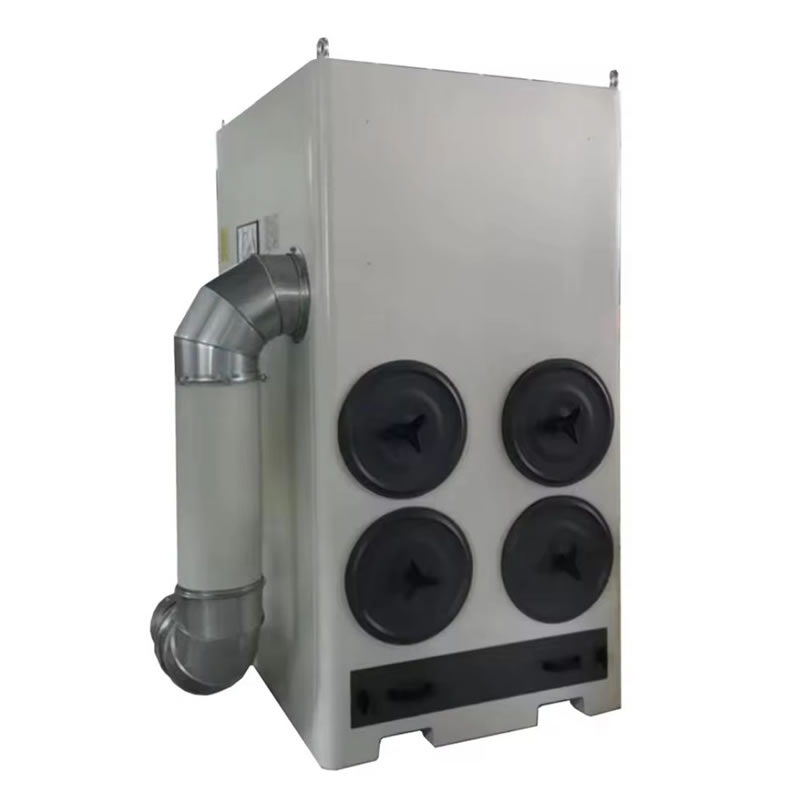

Dust Extraction System(Optional）

French Schneider Electric

Japanese SMC Scale Valve

Panasonic Servo Motor

Model	KCG-6022	KCG-6035	KCG-9022	KCG-9035	KCG-12022	KCL-12035
Pipe Cutting Length (mm)	6000	6000	9000	9000	12000	12000
Chuck Diameter(mm)	220	350	220	350	220	350
Laser Power (w)	1000W-20000W
Maximum Positioning acceleration(m/min)	10 m/s2
Positioning Accuracy (mm)	0.03 mm
Reposition Accuracy (mm)	0.02 mm
Retation Axis Speed	80 rmp
