Ironworker and Notcher

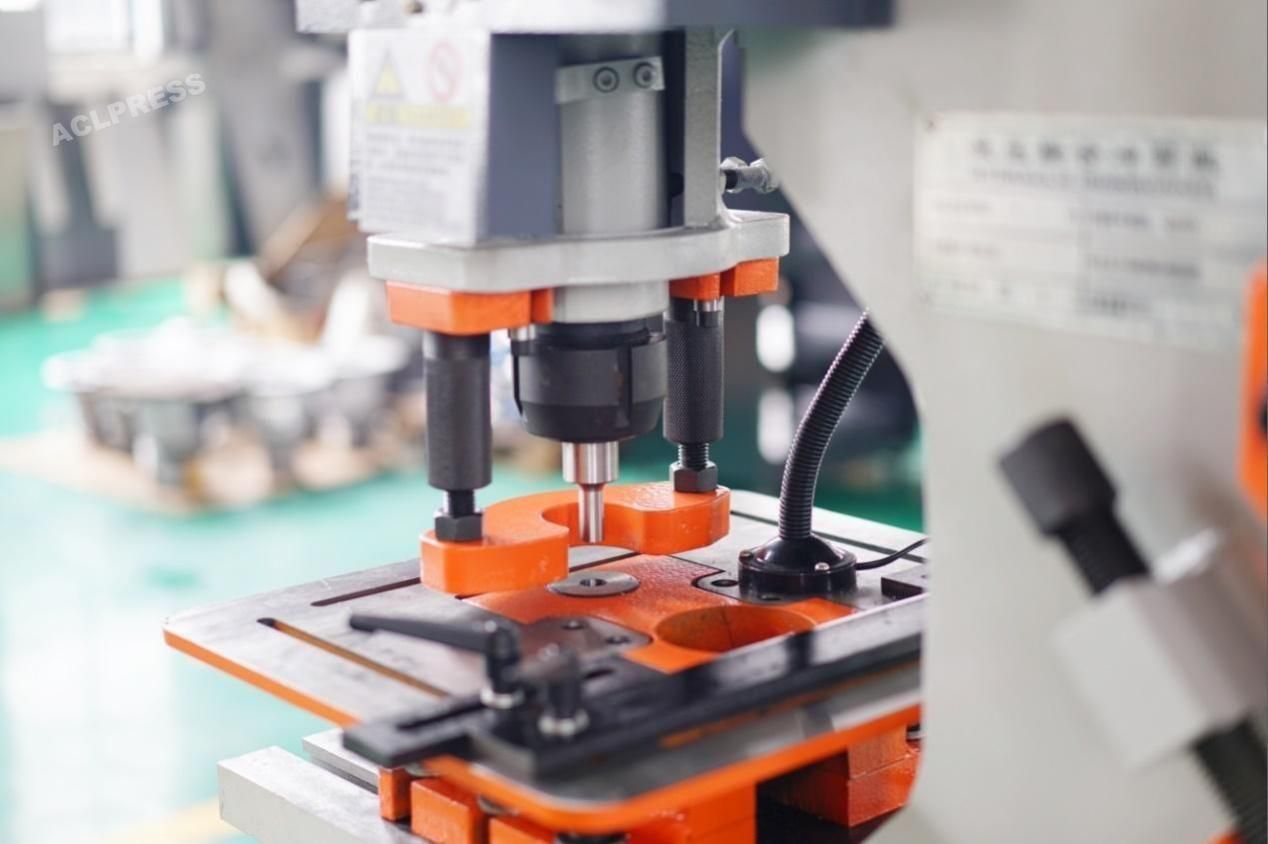

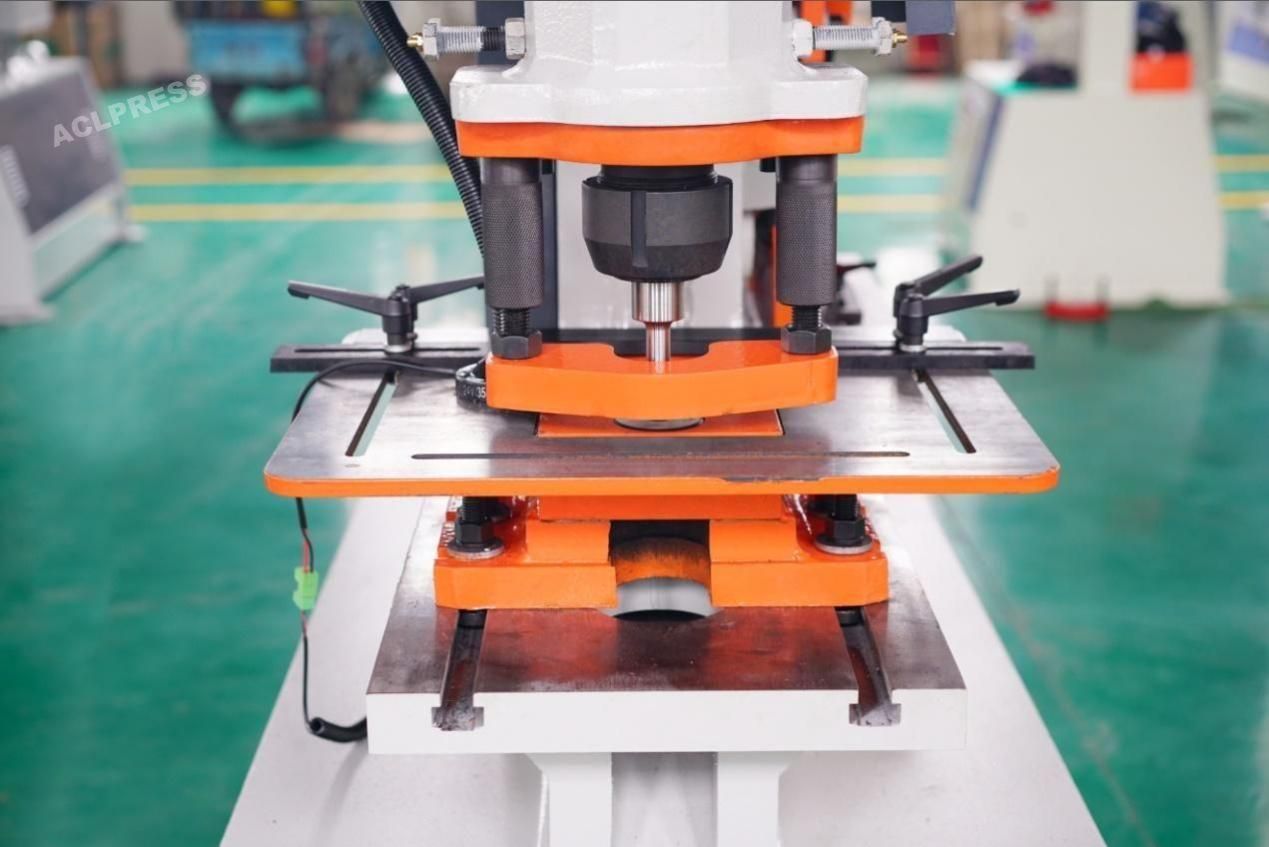

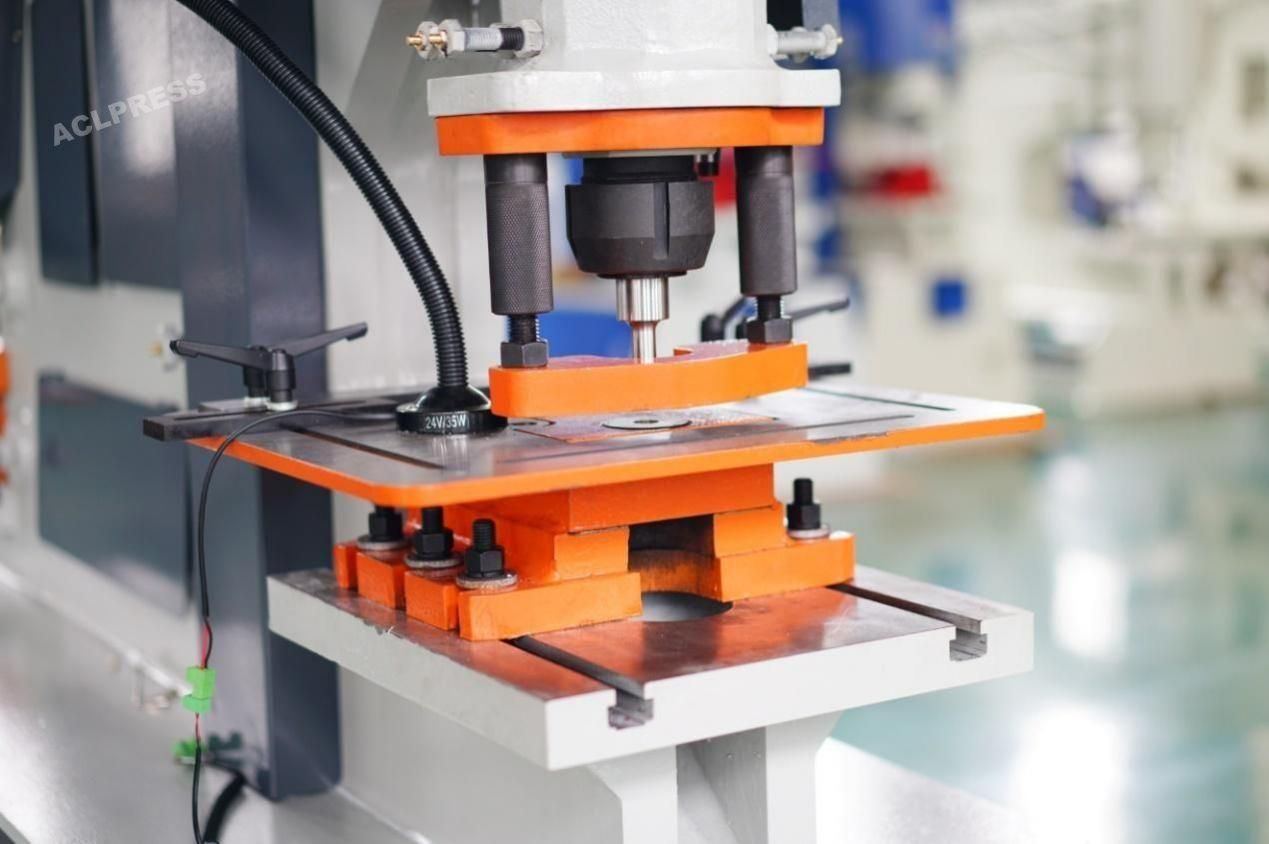

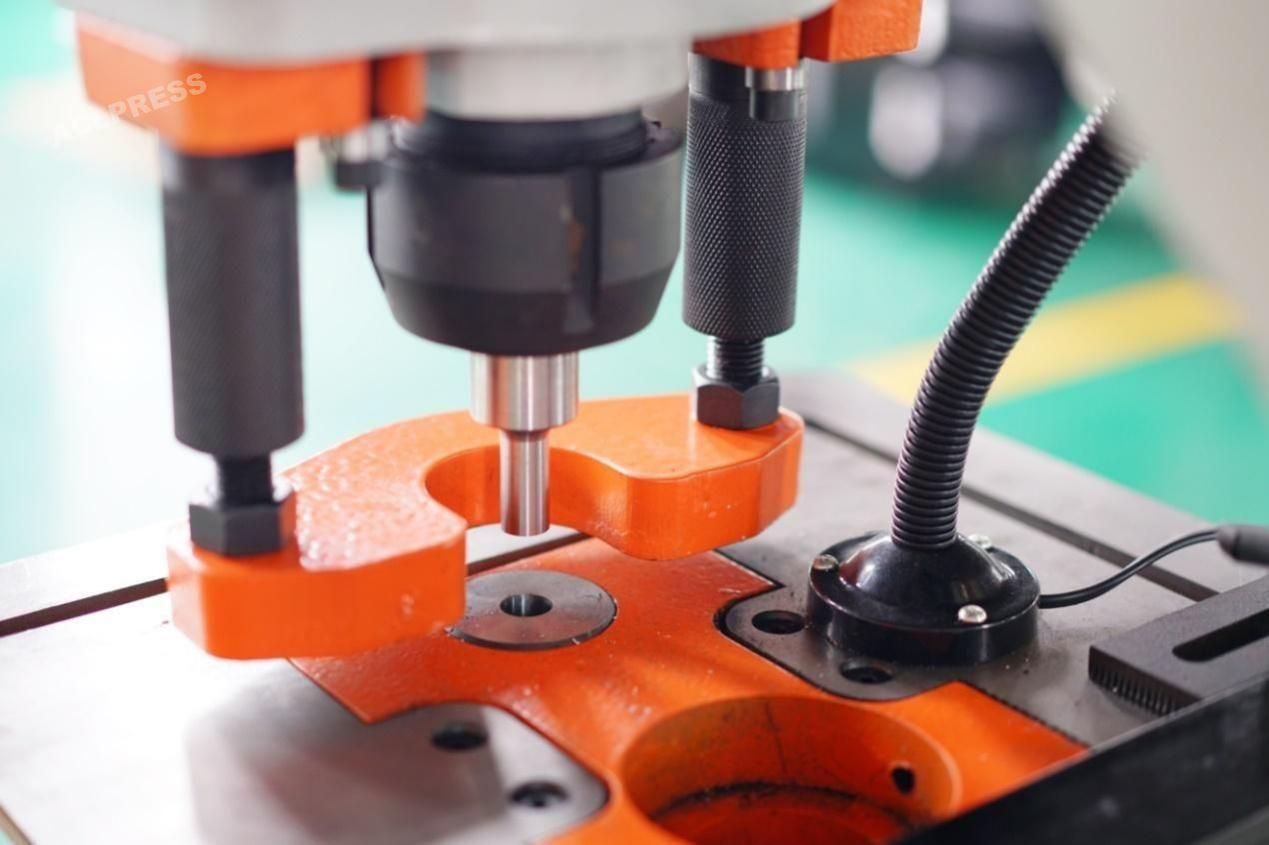

1. Hole punching
2. Sheet bending

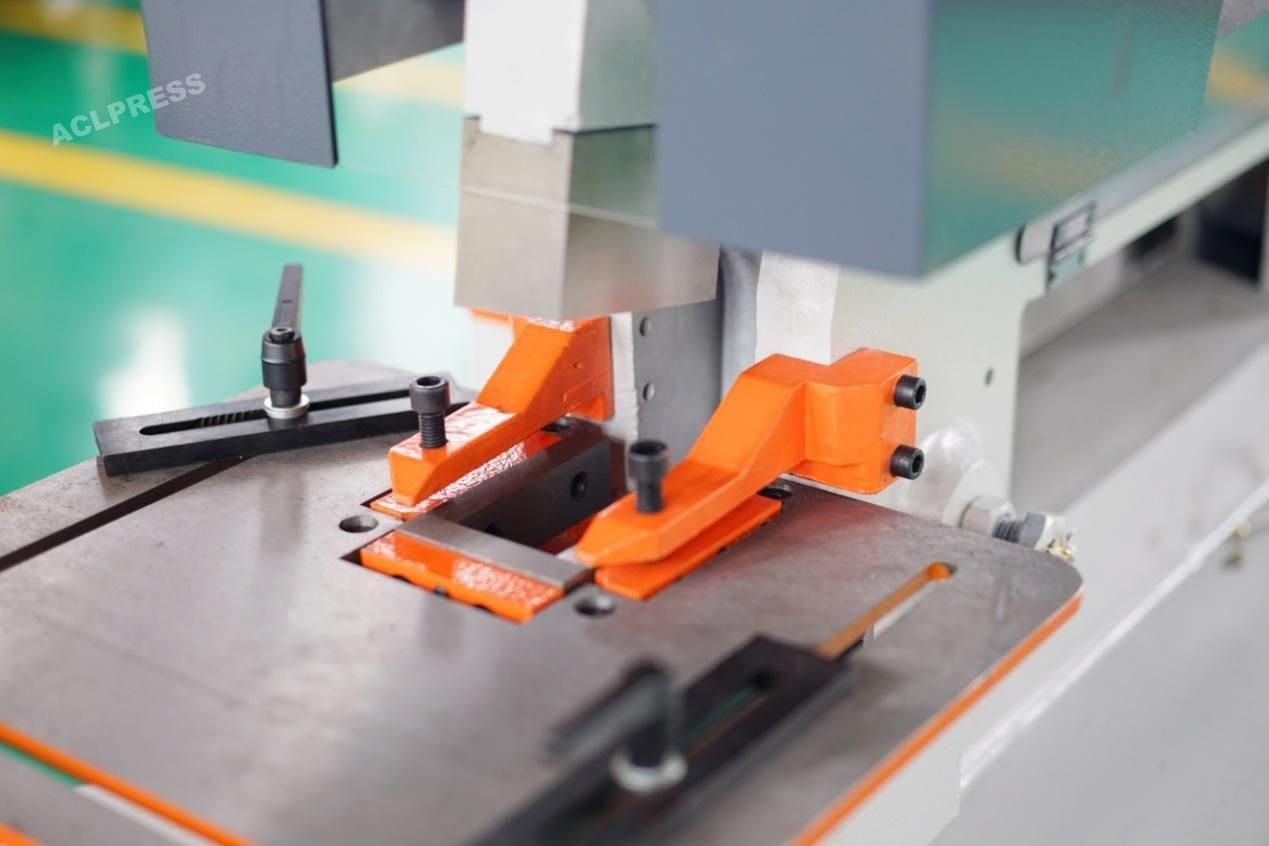

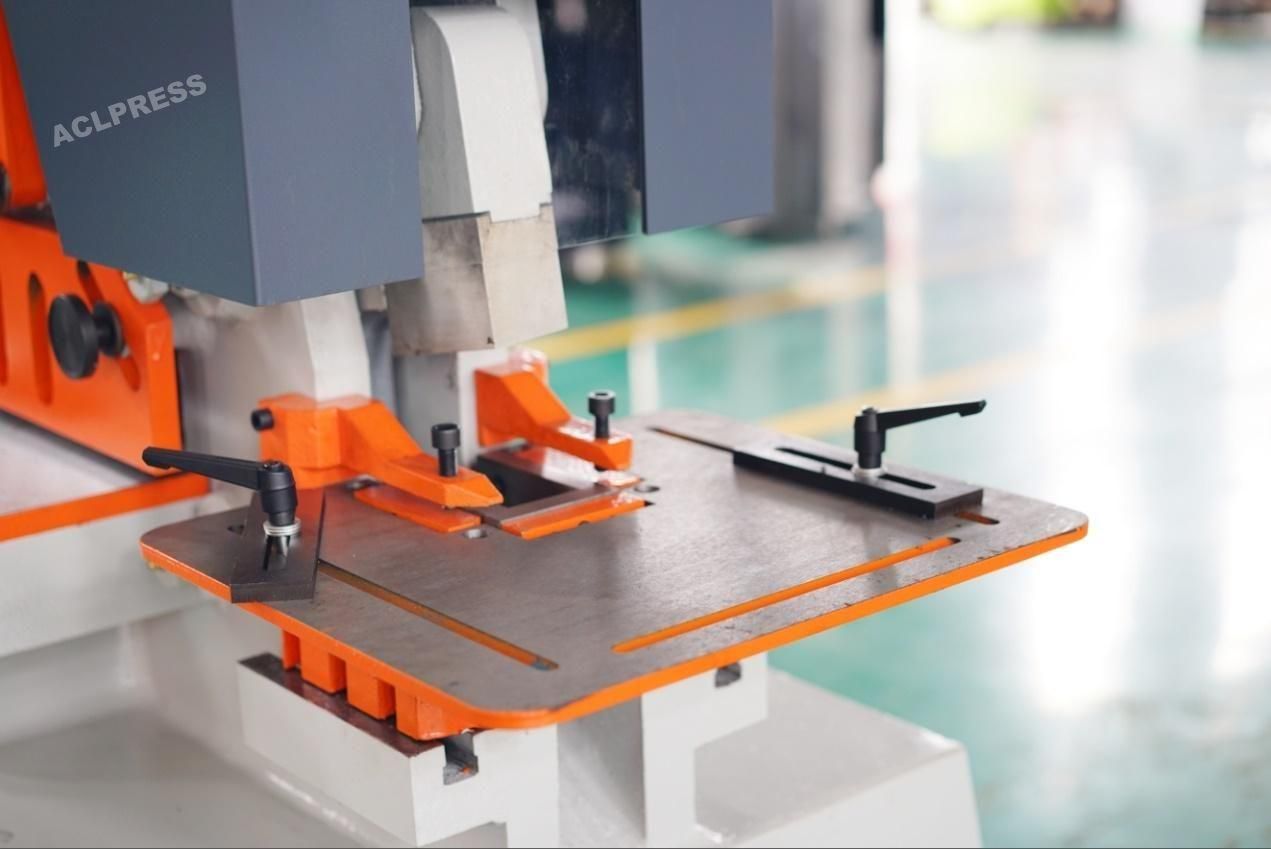

3. Sheet notching

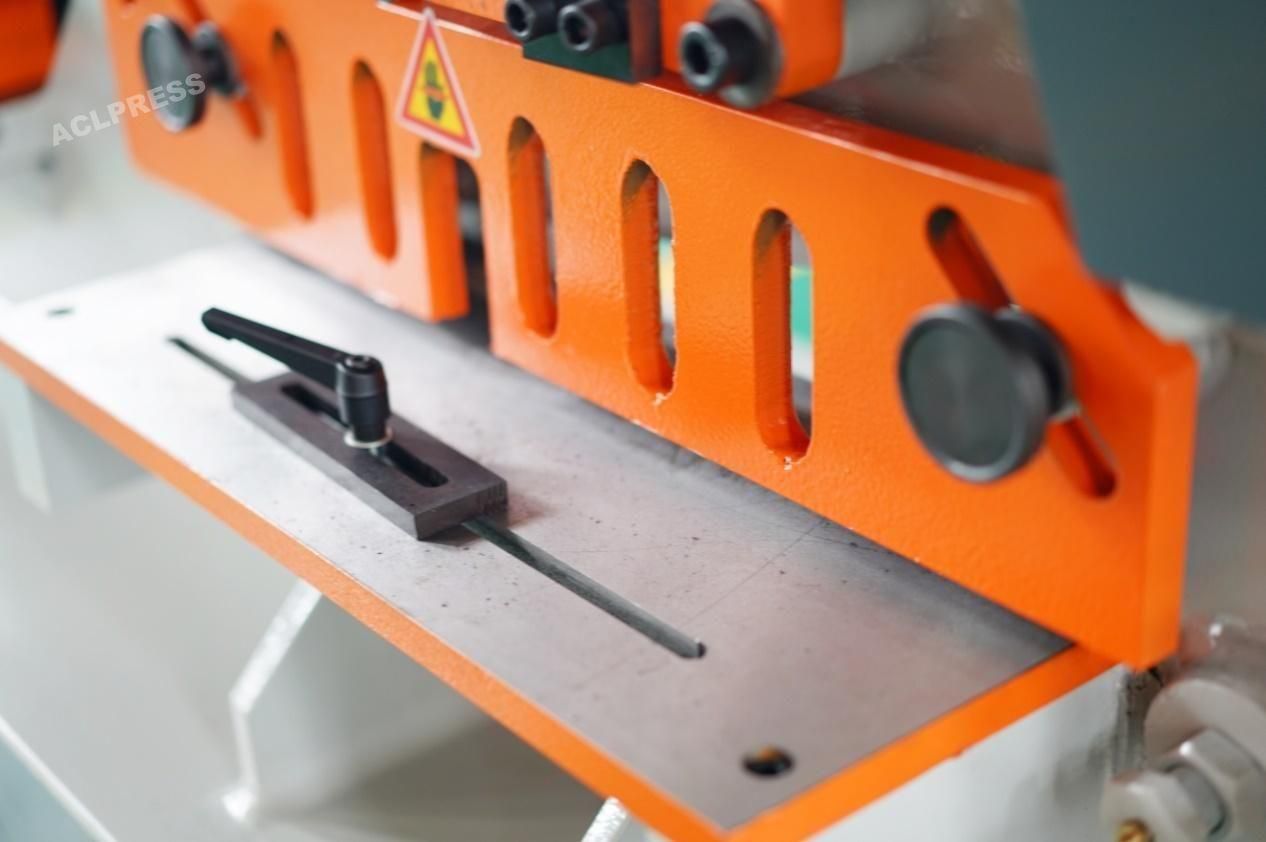

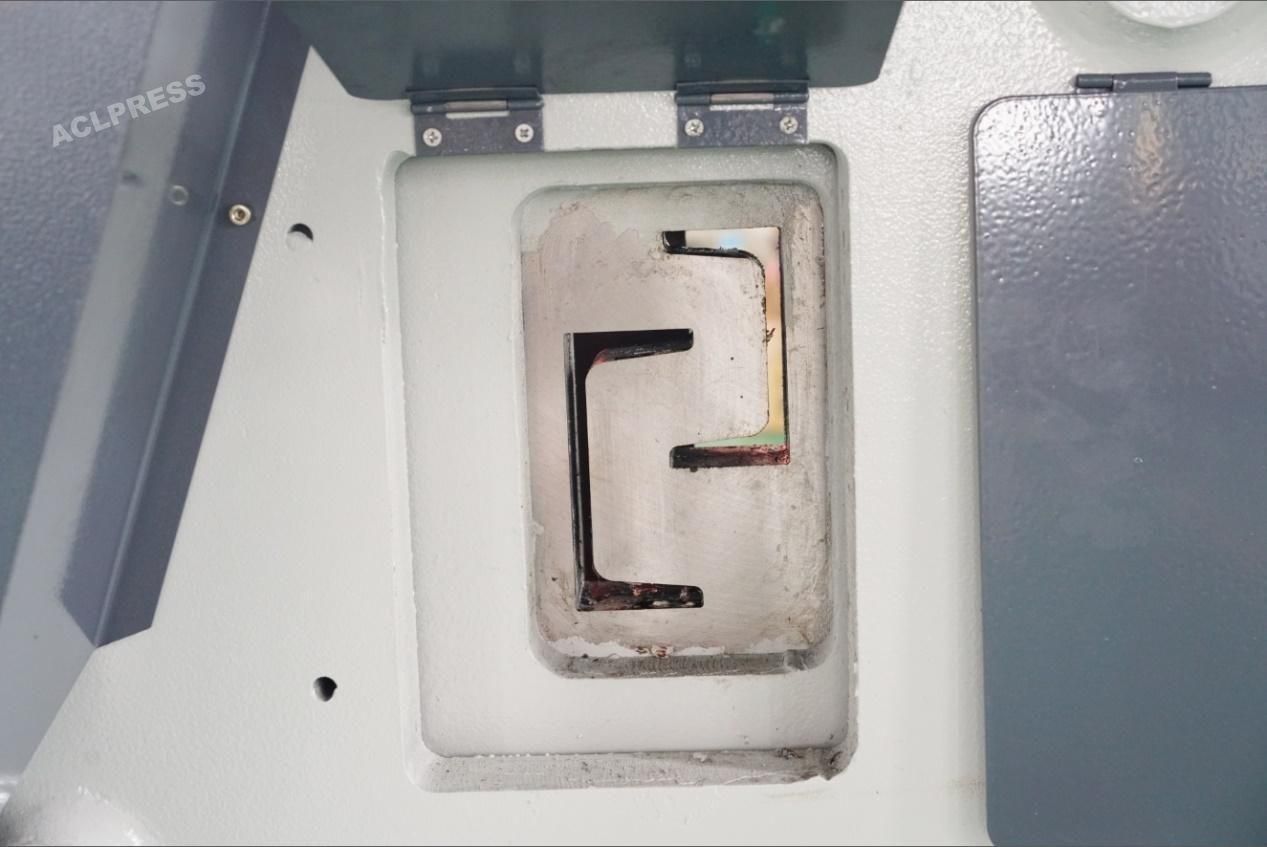

4. Flat sheet cutting

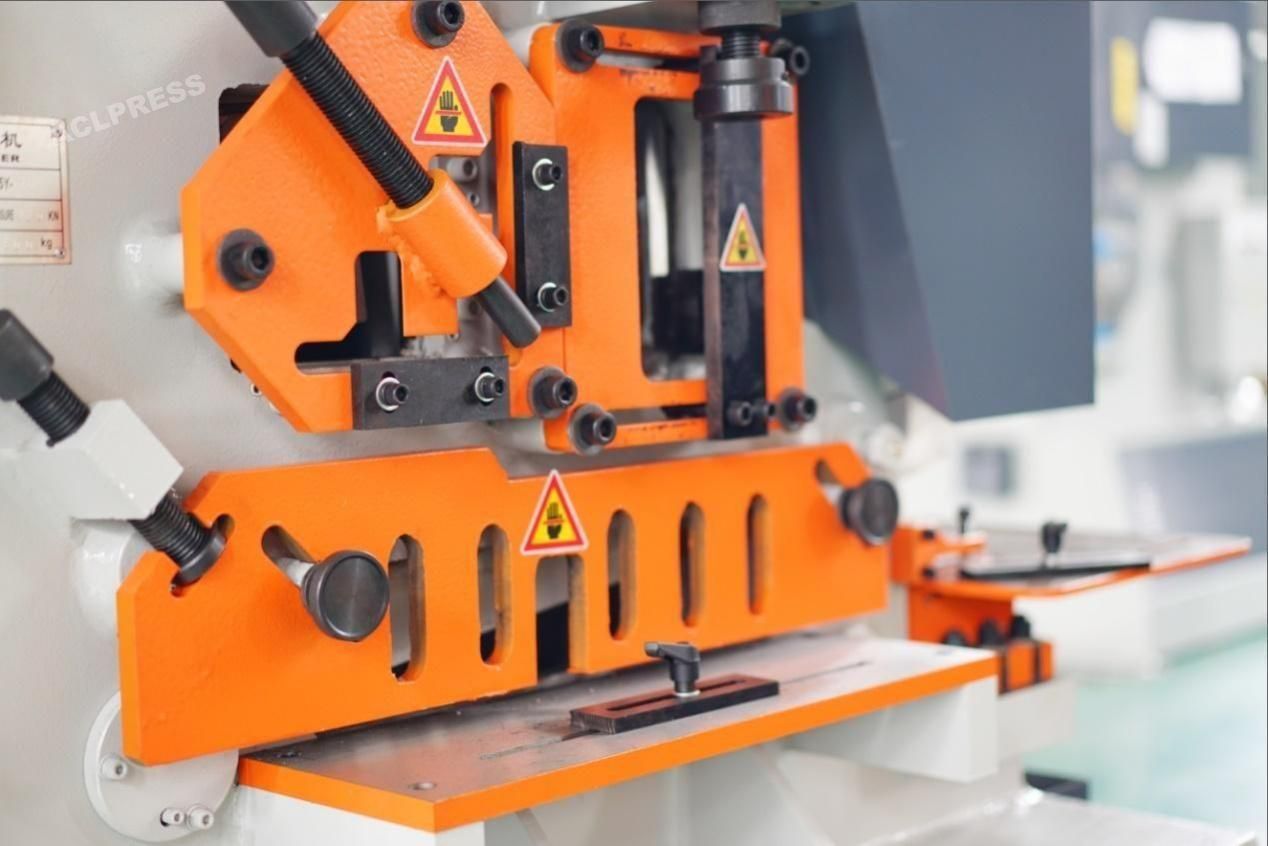

5. Angle steel cutting
6. Channel steel cutting
7. Louver hole punching
8. Square and round steel cutting

Inquiry

Features
Details
Specifications
Inquiry
Related Products

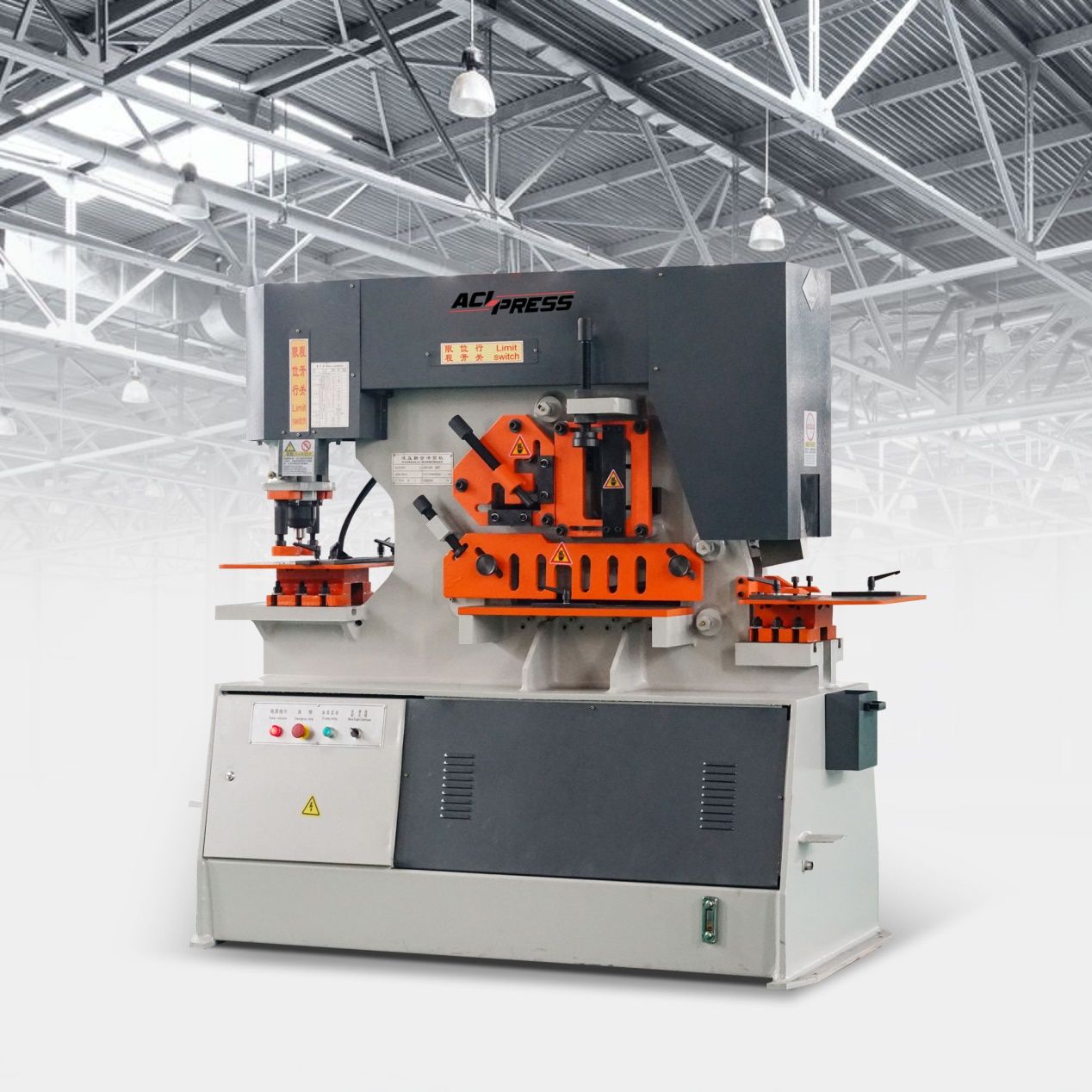

The Q35Y Multifunctional Hydraulic Ironworker is a machine for manual shearing, cutting, and blanking of metal materials. It uses overlapping two-stage levers, sliders, etc., to drive the slide plate equipped with three types of shear blades up and down, and the fixed blade mounted on the frame to complete the shearing and punching process. This machine has a compact structure, small volume, lightweight, and easy to operate. Excluded the old mechanical shearing machine gear rotation part, vulnerable, easy to bad, noisy, and other shortcomings excluded the hydraulic shearing machine, hydraulic components, and electrical parts easy to failure and oil seepage and other shortcomings. Easy to operate, high shear accuracy, can be programmed to set the width of the shear plate material and the number of times. Shear the power required less, less power consumption, energy saving, low noise. Advanced manufacturing structure, less wearing parts, no maintenance.

Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40	Q35Y-50
Pressure(ton)	65	90	120	160	200	250
Maximum thickness(mm)can be cut	16	20	25	30	40	50
Plate strength(N/mm²)	≤450	≤450	≤450	≤450	≤450	≤450
One stroke Shears size (D×W)(mm)	16×250	20×330	25×330	30×330	35×400	40×400
One stroke Shears size (D×W)(mm)	8×400	10×480	16×600	20×600	25×700	30×750
Slide stroke	80	80	80	80	80	80
Stroke frequency(beats/min)	12	12	10	10	10	10
Throat depth(mm)	300	355	400	600	600	600
Punching thickness(mm)	16	20	25	26	35	40
Maximum punching diameter(mm)	25	30	35	38	40	40
Main motor power(kW)	4	5.5	7.5	11	15	18
Dimensions(L×W×H)mm	1640×730×1770	1860×800×1990	2355×960×2090	2680×1040×2300	2970×1240×2350	3000×1440×2450
