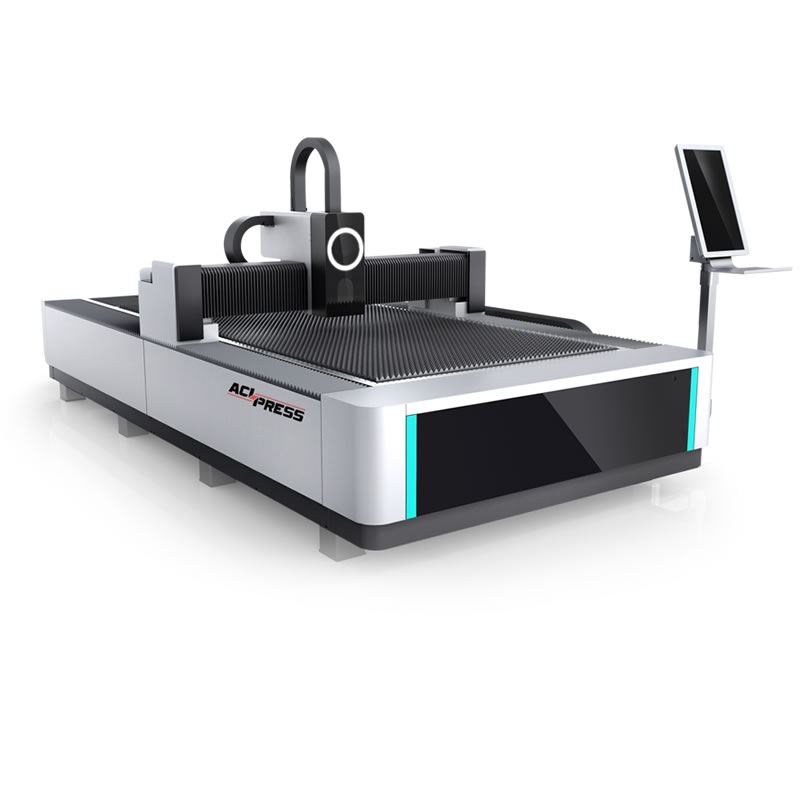

Open two-wheel drive fiber laser cutting machine.
Improved beam quality results in a smaller focus spot, finer cutting lines, smoother incisions, a beautiful appearance, no deformation, and higher work efficiency.
We have enhanced processing quality.
Exceptional stability is achieved through a top-tier fiber laser, compact structure, small size, fixed optical path, low energy consumption, and stable cutting quality.
Unrestricted optical and minimal optical fiber transmission loss maximize the processing range.
Significantly reduced maintenance costs due to no laser working gas or optical fiber transmission without reflective lenses, leading to substantial savings.
Professional software enables timely processing of various graphics text, offering simplicity and convenience.
Energy-efficient and environmentally friendly, featuring an effective smoke and dust removal system.
Low operating costs cater to the demands of 24-hour industrial production.

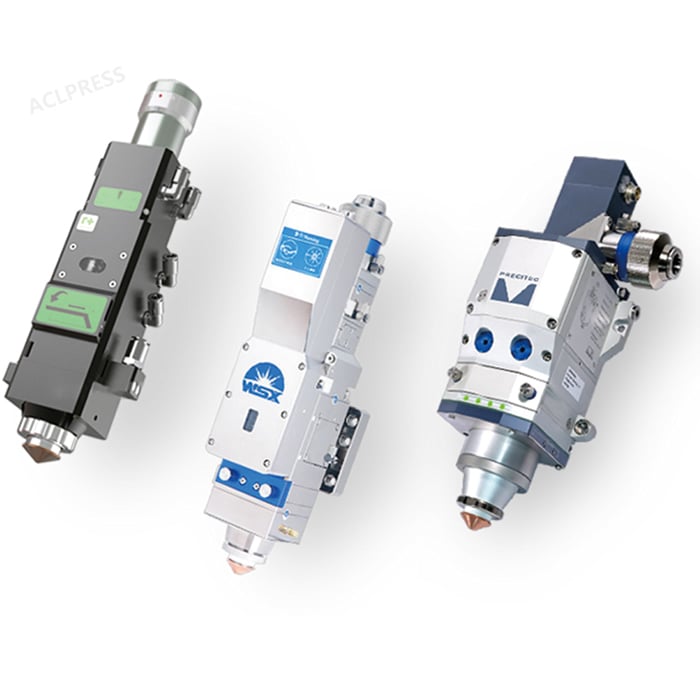

Laser Cutting Head

Three protective lenses efficiently protect the collimating and focusing lenses. Bidirectional optical water cooling efficiently extends the continuous working time.
No manual focusing is required as the software automatically adjusts the focusing lens, simplifying the operation and making it ten times faster than manual speed.
Various stable qualified brands of laser heads are available for ACL laser.

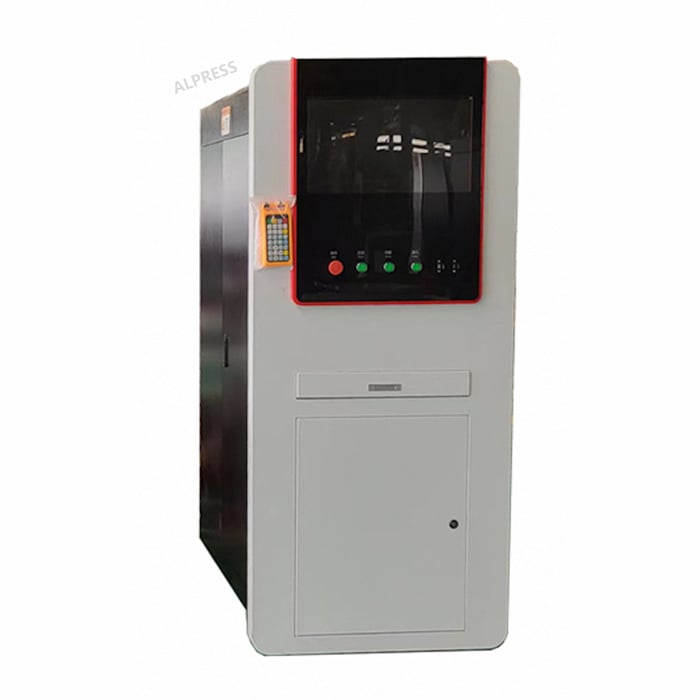

Electric Cabinet

Separate electric cabinet with air conditioning.

Hanli Brand Industrial Chiller

Hanli Water Chiller.

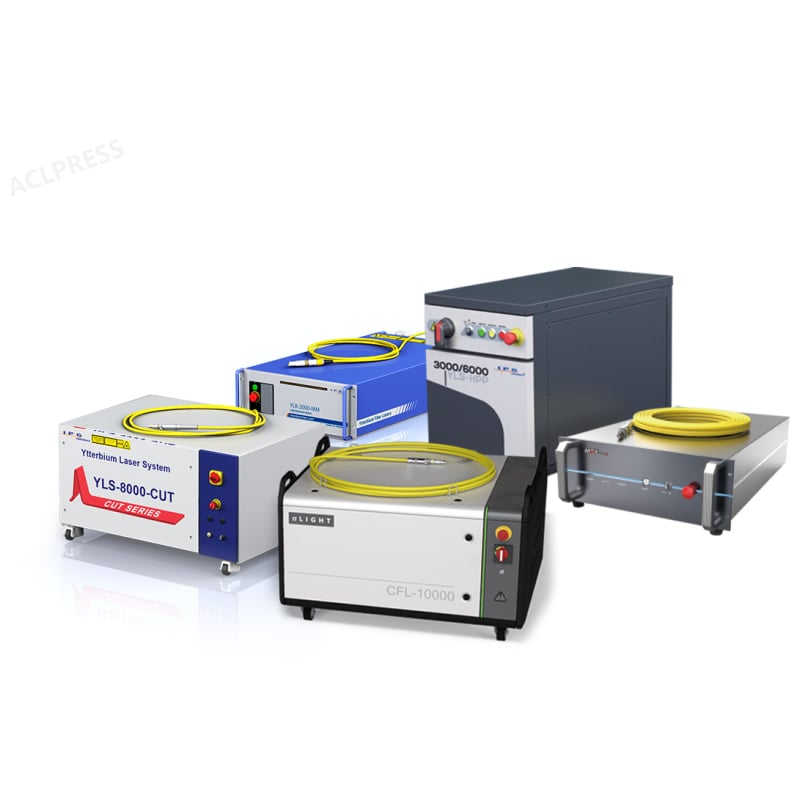

Great Brand Fiber Laser

MAX & Raycus & IPG Brand Laser Source.
Higher electro-optical conversion efficiency, excellent reliability, modularity, easy maintenance, and low, and high reflection resistance.
It adopts an air-cooled compact structure design with a semiconductor fiber as the laser generation medium, which is environmentally friendly. The mechanical structure is simple, and the optical path is constant, requiring almost no maintenance, and ensuring stable cutting performance.

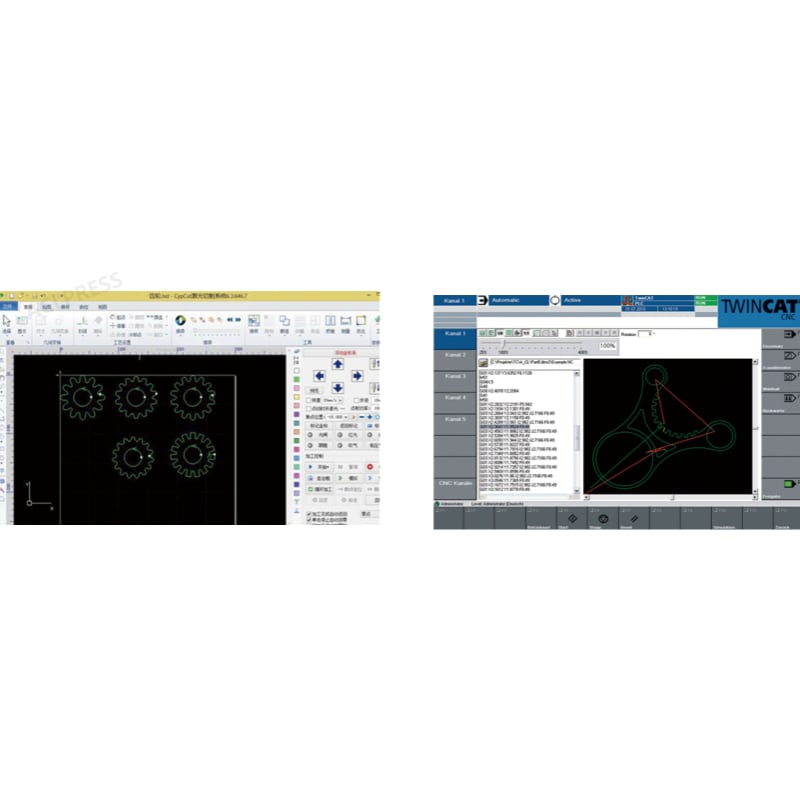

Cypcut or Beckhoff Laser Cutting System

CYP-CUT is user-friendly, offering various file editing functions, remote control support, real-time alarm, and protection.
The intelligent visual control system makes it easier to understand the operation interface, allowing for intuitive adjustments to laser power, gas type, and pressure. Additionally, intelligent edge finding enables automatic positioning, making efficient production easy to achieve.

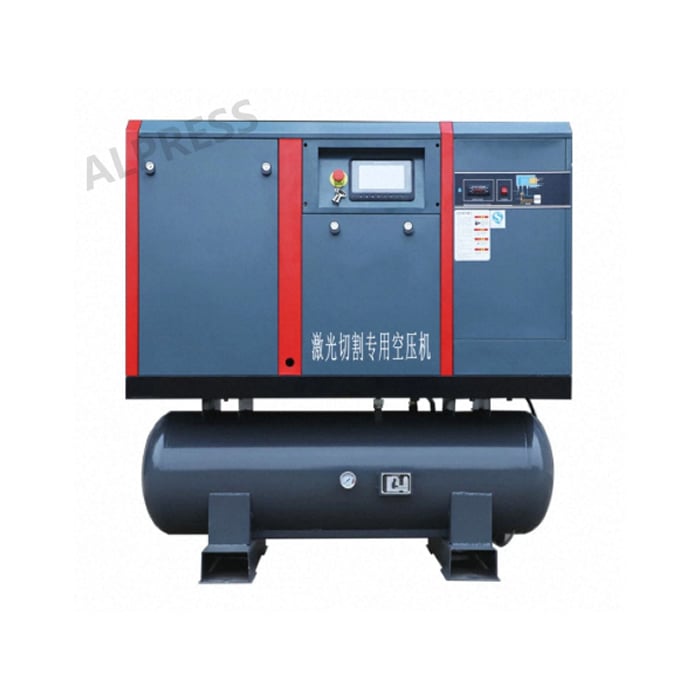

Air Compressor(Optional）

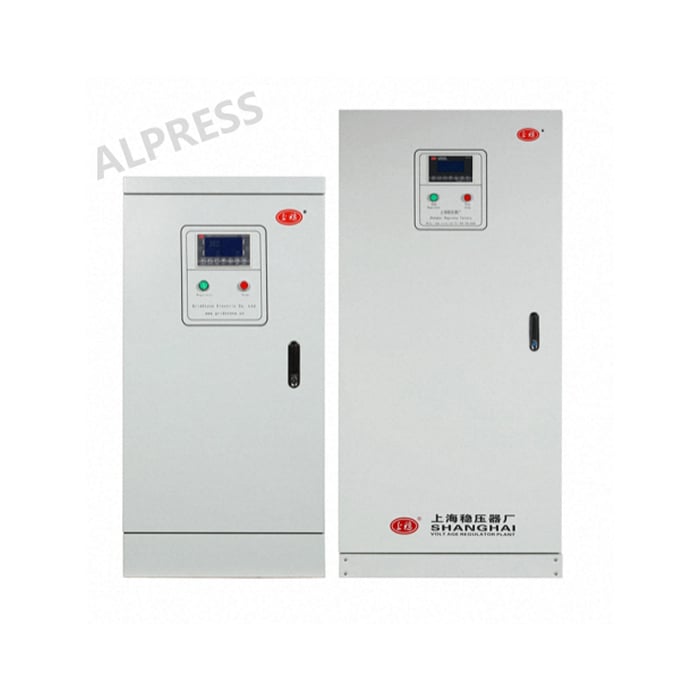

Volatge Regulator(Optional）

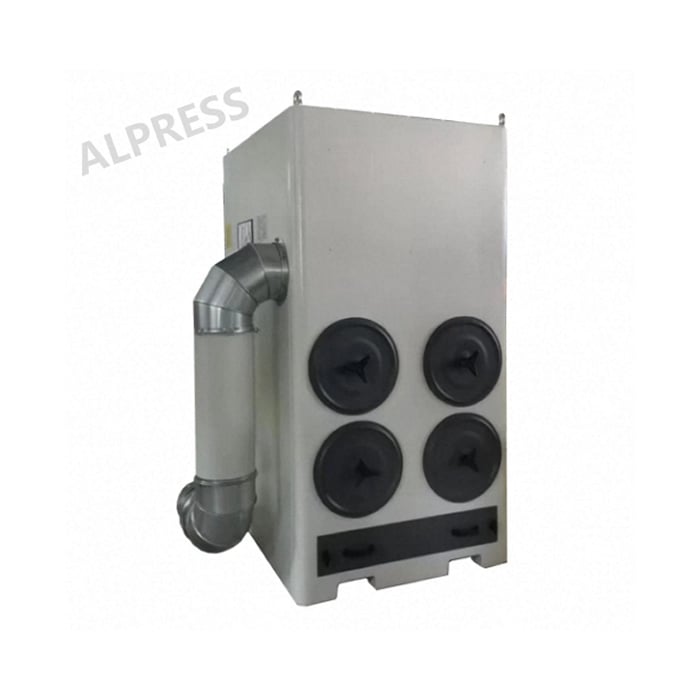

Dust Extraction System(Optional）

French Schneider Electric

Japanese SMC Scale Valve

Panasonic Servo Motor

Model	KCL-D3015	KCL-D4015	KCL-D4020	KCL-D6020	KCL-D6025	KCL-D8025	KCL-D10025
Cutting Range (mm)	3000 *1500	4000* 1500	4000* 2000	6000* 2000	6000* 2500	8000* 2500	10000* 2500
Laser Power (w)	1000W&1500W&2000W&3000W&4000W&6000W&8000W&12000W
Maximum idle speed	160 m/min
Maximum cutting speed	35-80 m/min
Positioning Accuracy	0.03 mm
Reposition Accuracy	0.02 mm
