Press Brake Tools Clamping
Press brake tools clamping
ACLPRESS can select different clamping options based on varying customer requirements and can provide customized solutions promptly and with top-notch quality. The available options include KJ100, KJ100-A, double-sided KJ100, PT100, PT, Fast double-sided Clamping, Z-1 single-sided clamping, Z-1 double-sided clamping, Z-Ⅱ single-sided clamping, Z-Ⅱ double-sided clamping, and customized, and customized clamping designs.
- Features
- Details
- Specifications
- Inquiry
- Related Products
ACLPRESS Clamping is compatible with other leading press brake machine brands such as AMADA, TOKYO, KOMATS, LVD, BEYELER, STRIPIT, TRUMPF, FINN-POWER, as well as Chinese manufacturers like Yangli, JinFangyuan, Yawei, Deratech and so on.
Punch-Holder (Tooling clamp)
Today's smaller lot sizes require fabricators to reduce press brake setup times. Now, you can reduce setup time on your existing brake by more than 50% while increasing operator safety with a punch holder. punch holder offers a convenient solution for upgrading your existing holders. holds both European-style tooling as well as AMADA's latest One Touch style tooling.

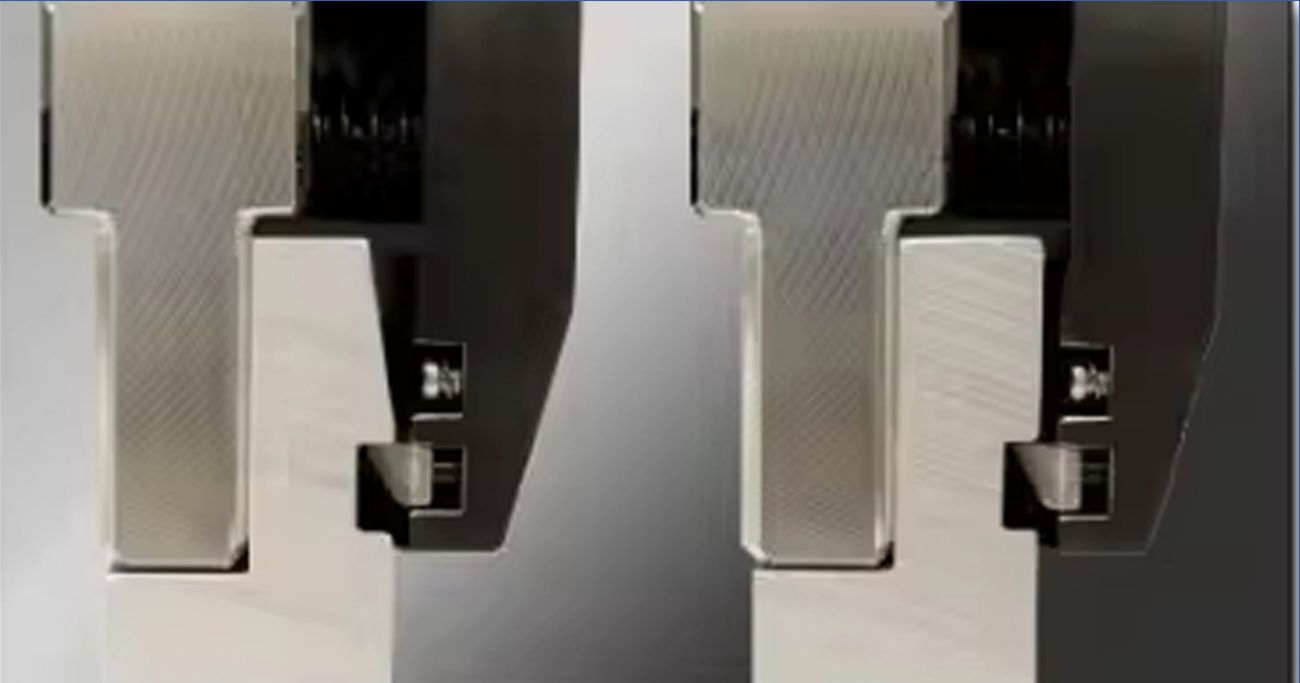

AMADA oneTeuch Style Punch
Standard European Style Punch
VERSATILE CLAMPING

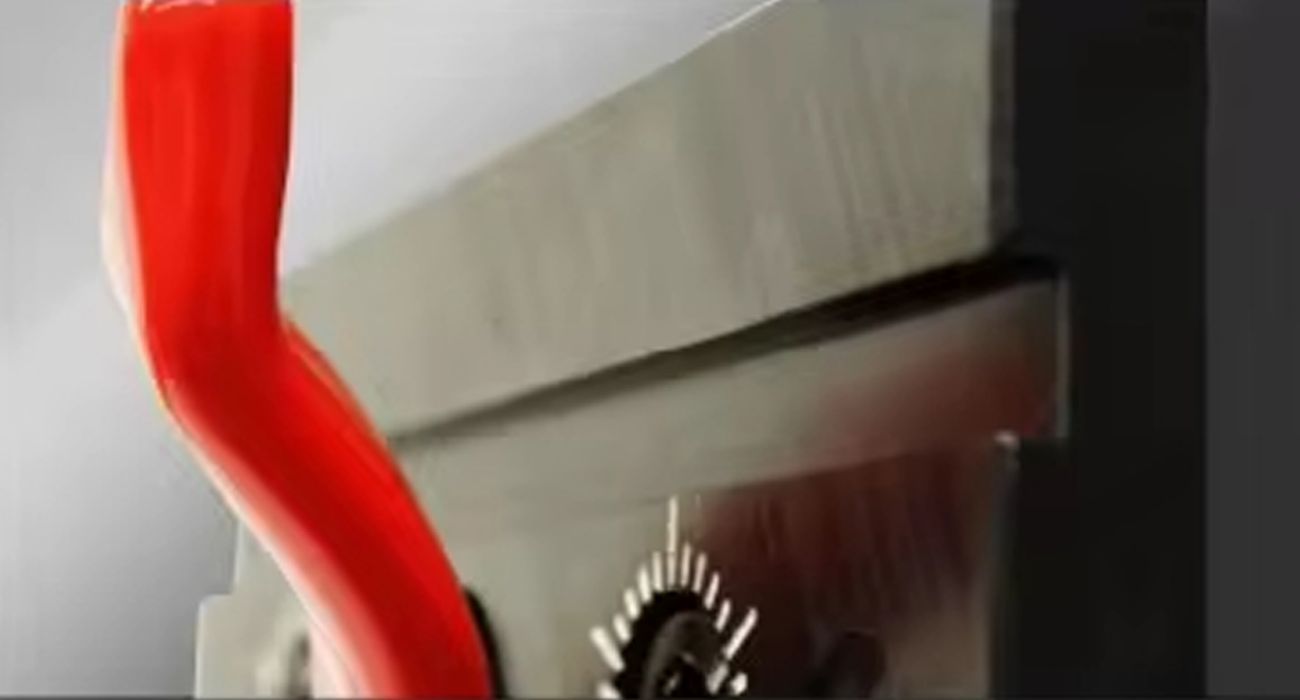

The holds both standard European style punches andAMADA One Touch style punches allowing fast and easy toolsetup. Slide in either tool and turn the lever to secure the punch.
GAPLESS SETUP

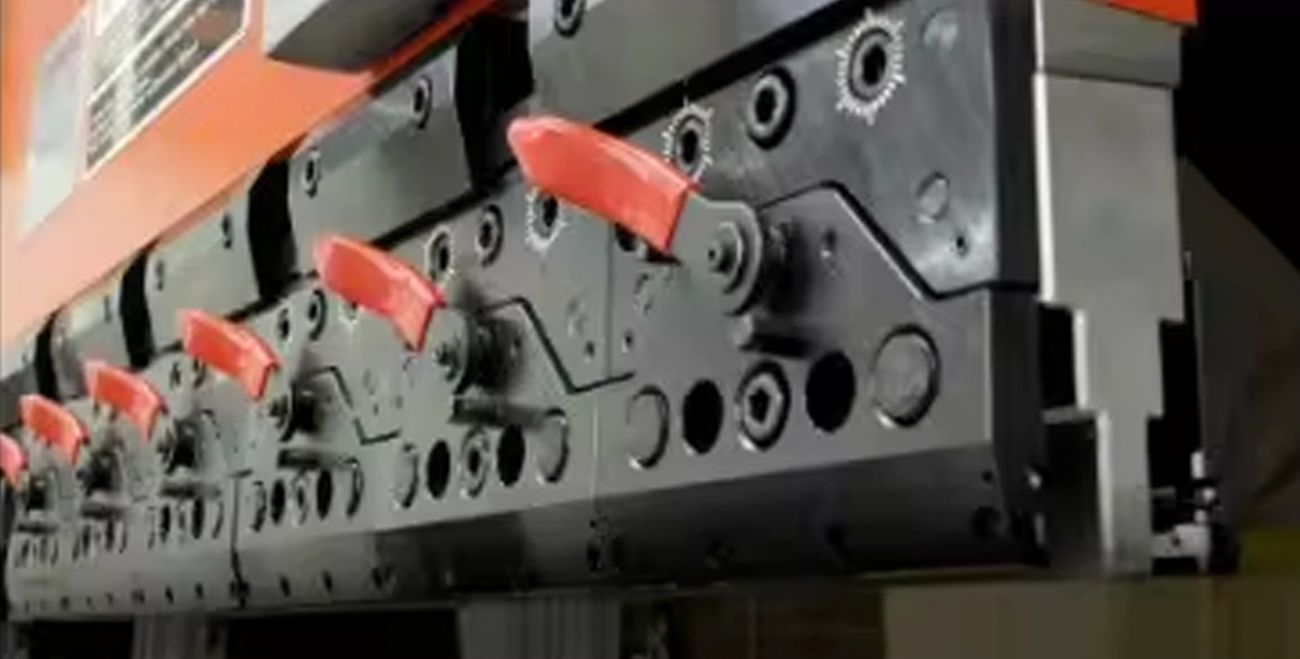

The internal adjustment wedge allows the faster holders to be located directly next to each other providing setup flexibility when using smaller sectionalized punches.
OPERATOR SAFETY

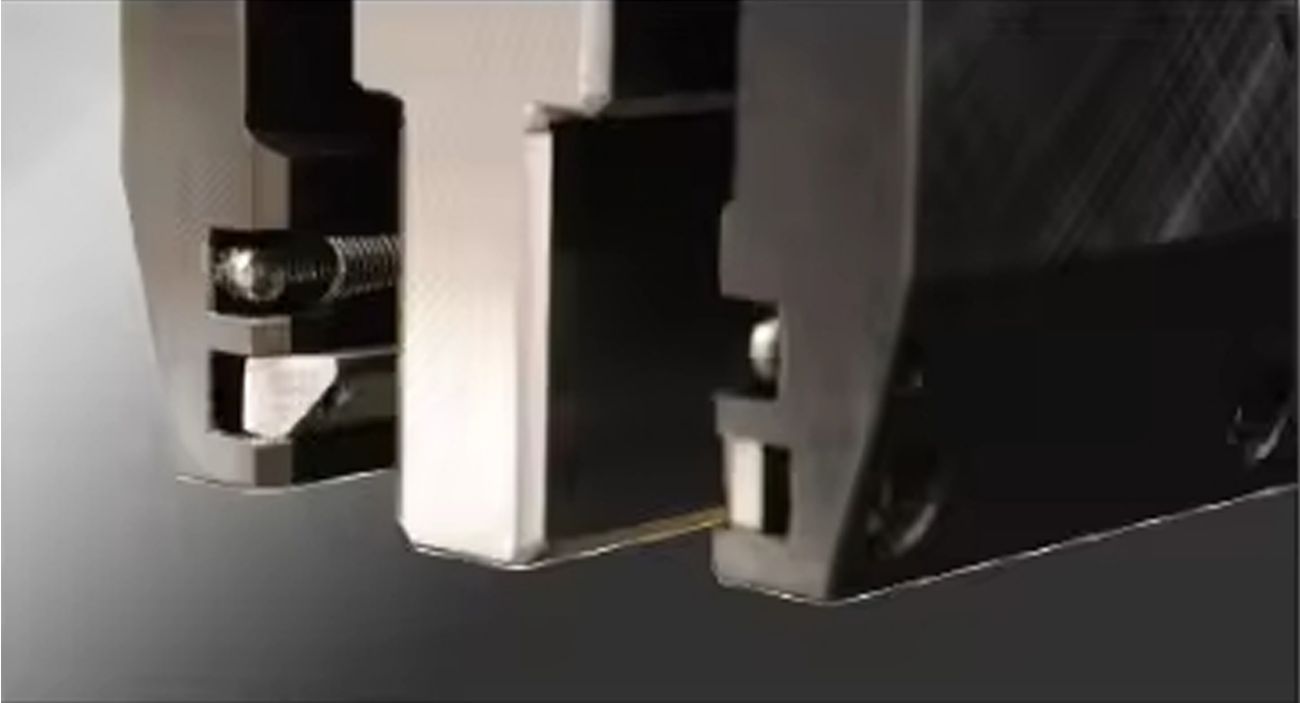

The drop prevention bar prevents punches from falling out of the punch holder during setup increasing operator safety. Once the punch is inserted into the clamp, the punch can be moved to any location along the brake bed eliminating the possibility of it falling out of the clamp.
SAFETY GROOVE
A special clamp plate is available that mounts the holder to the machine utilizing the safety groove on the top portion of the punch holder: This special clamp plate prevents the holder from dropping when horizontal movement of the clamp is required.
| Description | Tooling Clamp |
| Code# | 15001 |
| Tool Compatibility | Standard European/AMADA One-Touch |
| Machine Compatibility | Hydraulic Press Brakes |
| Holder Length | 150mm |
| Effective Height | 120mm |
| Allowable Tonnage | 1000kN/m(100tons/m) |
