ACLPRESS CNC press brake machine

1.High precision
The CNC bending machine adopts an electronic control system, which can achieve high-precision bending processing, and the accuracy can reach 0.01mm, which is more accurate than the traditional bending machine.

2.High-efficiency
The CNC bending machine can automatically complete the bending process, which is more efficient than manual operation. It can complete dozens of bending per hour, which greatly improves production efficiency.

3.Programmable
The CNC bending machine has a programmable function, which can set different bending angles, bending times, and other parameters according to different processing requirements to meet different production needs.

4. Easy to operate
The operation of the CNC bending machine is simple and easy to understand. It does not require too much professional knowledge. You only need to master certain operation skills to complete the operation control of the equipment, which reduces the difficulty of operation.

5. Multifunctions
CNC bending machines can realize the bending processing of metal materials of different shapes, which is suitable for various production fields.

Inquiry

Features
Details
Specifications
Inquiry
Related Products

The CNC bending machine is a type of mechanical equipment utilized in metal processing for bending operations. It is controlled by a to automatically complete the bending process of the workpiece.
Typically, a CNC bending machine consists of main components including the frame, workbench, hydraulic system, transmission system, and numerical control system. The operator inputs the bending process parameters and geometric shape information of the workpiece through the numerical control system, after which the machine processes automatically based on the program.
Using a CNC bending machine from ACLPRESS for bending offers numerous advantages over traditional manual or mechanical methods.
Firstly, it enables highly automated production, production efficiency, and work accuracy.
Secondly, the numerical control system provides high flexibility to adjust the program for bending different workpieces and meet various production requirements.
Moreover, the CNC bending machine from ACLPRESS reduces labor intensity, enhances safety, and provides added convenience and benefits to production enterprises.

DA41S NC PRESS BRAKE

Easy Bend B Series Hydraulic NC Press Brake Machine is our most popular model by volume and a true workhorse. The studies made on the framework functions have allowed us to design a product that reacts in the most appropriate and responsive way to the mechanical solicitations, therefore guaranteeing a stable structure and, thus a higher precision in bending. This feature is even enhanced by a system of manual crowning. Worth mentioning is also the possibility of adding options and upgrades to the configuration, at a later stage. Constructed of high-quality parts and offering serious reliability, Y-axis Torsion bar synchro technology with high approach, bending, and return speeds.

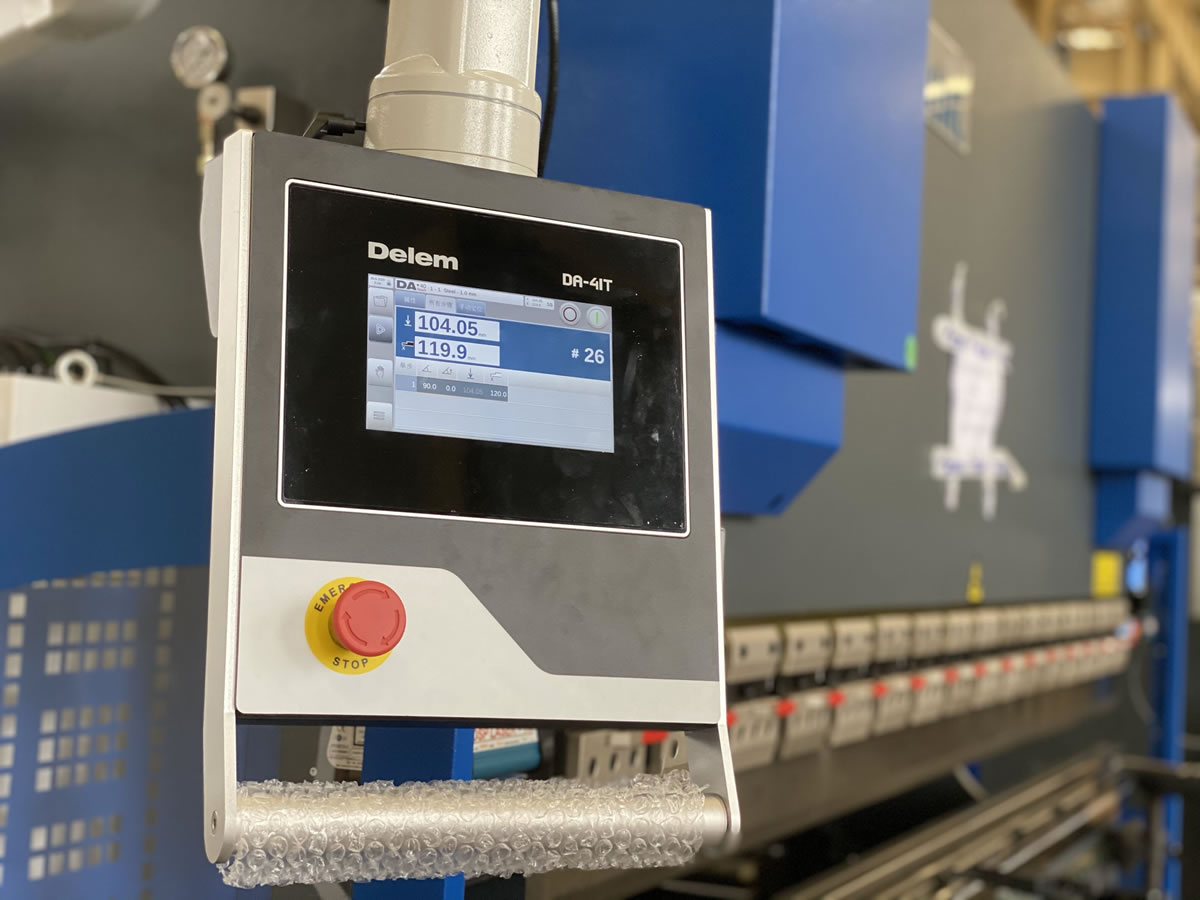

The DA-41s control provides a complete solution for conventional press brake applications for 2 axes. Offering a versatile solution for axes control for the press beam and back gauge as well as a flexible I/O configuration, based on state-of-the-art electronics.

DELEM DA41s NC System Features:

Bright LCD display 320 x 240
Angle & Tool programming
CNC Back gauge control
Developed length calculation
Up to 25 bends per program
Servo, frequency inverter, and AC control
The basic machine control functions are Y, X-axis.

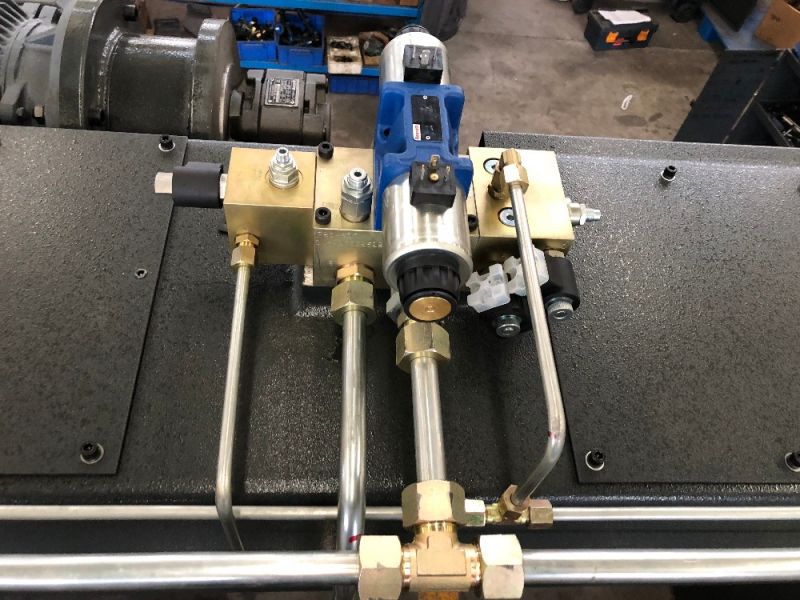

HYDRAULIC SYSTEM

Germany Bosch-Rexroth integrated hydraulic system block, hydraulic transmission with high reliability, integrated hydraulic system can effectively alleviate problems caused by leakage of hydraulic fluid.

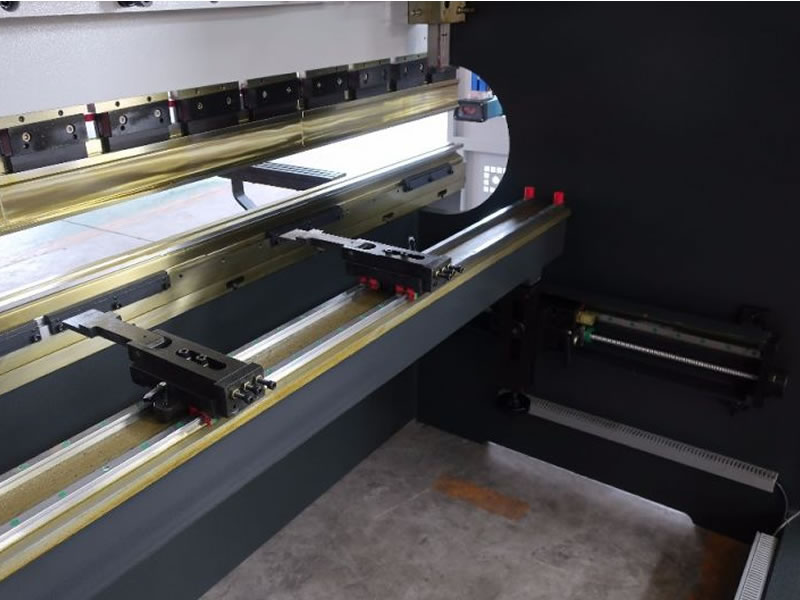

BGA-1 CNC BACK GAUGE

Press brakes are equipped with a BGA-1 CNC back gauge constituted by a solid structure to assure the best repetitiveness and high precision in axes positioning.

X-Axis with HIWIN linear guide and Ball Screw.
Manual Z1, Z2-axis with a linear guide.
Driven by DELTA Servo Motors and drives.
Less noise, greater durability, and greater precision.

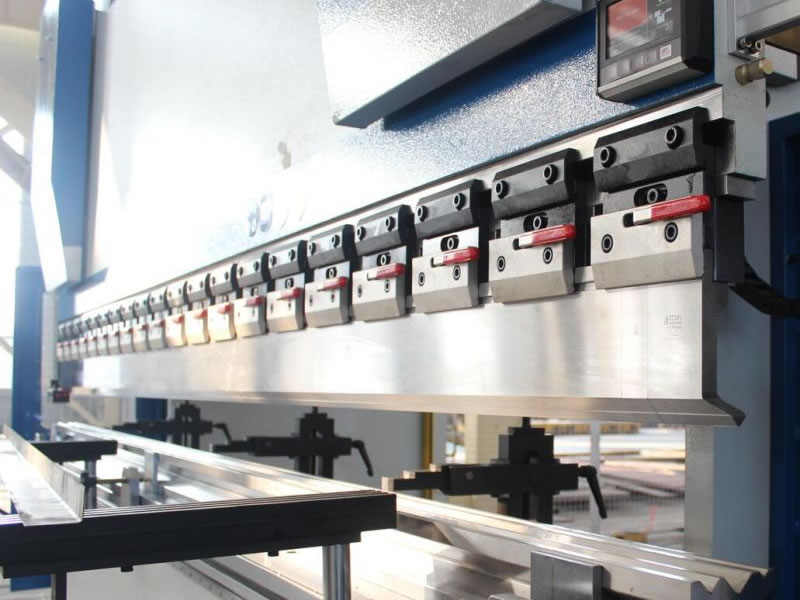

QUICK CLAMP SYSTEM

Safe and fast tool change.
Substantial improvement in time consumption and related costs.
Secure against tool falling.
Available in manual, pneumatic, and hydraulic models.
Mounting: Simply from the bottom into the housing, tighten-DONE!
Easy to mount on your press brake. Modifying the cation of the press brake is not necessary.

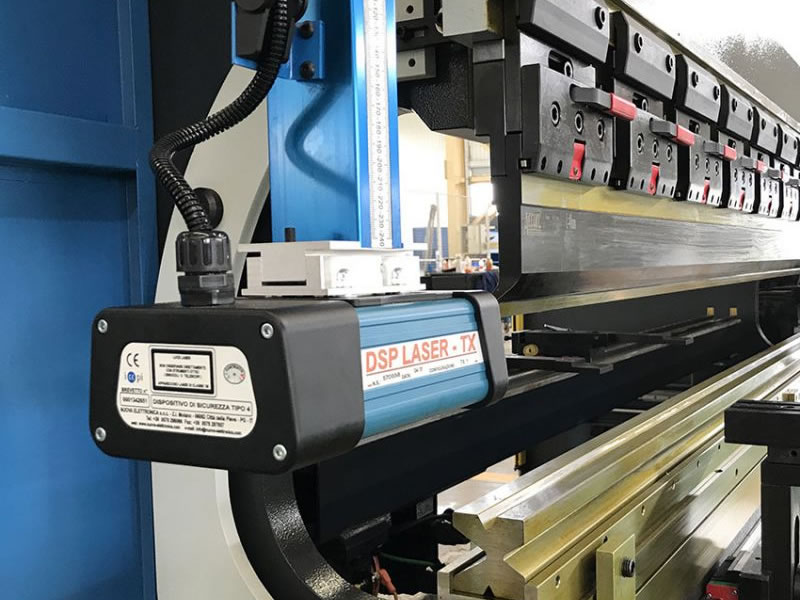

DSP LASER SAFETY SYSTEM

Press Brake Standard with DSP visible laser protection compliant with EN12622 regulation. The beam protects the press brake operator from the danger of being crushed between upper & lower tools.

The most advanced laser systems.
Box-shaped part bending feature.
Innovative tooling grid guarding pattern.
Completely foot peddle-controlled operation.
Auto-blanking for automatic box and side wall detection.
Type 4 patented process control.
"Safe Release" supports are unhooked without damages in case of collision.

Name	Unit	PRESS BRAKE AC‐MB7-100Tx3200
Bending force	ton	100
Bending length	mm	3200
Distance between columns	mm	2550
Stroke((Y-axis) NC‐controlled stroke axes)	mm	120
Daylight	mm	380
Throat Depth	mm	320
Bed Height	mm	800
Bed Cap Width	mm	80
Y-axis advance speed	mm / sec	120
Y-axis working speed	mm / sec	10
Y-axis return speed	mm / sec	100
X-axis BackGauge Speed	mm / sec	150
X-axis BackGauge Travel	mm	600
X-axis BackGauge Precision	mm	0.01
Gaugeable with 3rd Position	mm	850
Workpiece straightness	mm	0.6 /m
Bending angle accuracy	(′)	<±50
Sliding Front Arms	pcs	2
Backgauge Finger Block	pcs	3
Motor Power	kw	7.5
Oil Tank Capacity	lt	260
Crowning System	‐	/
Length	mm	3500
Width	mm	1650
Height	mm	2350
Weight	kg	7350
