Air duct machine
The flanging machine is essential equipment in the air duct manufacturing industry. It can handle various types of metal sheets to fulfill plate joining requirements. The standard version is capable of processing 0.5-1.5mm galvanized sheets. ACLPRESS recommends a high-strength roller made of GCr15 material, significantly increasing its lifespan compared to regular materials and enhancing overall work efficiency.

Inquiry

Features
Details
Specifications
Inquiry
Related Products

Main Technical Parameters

Model	Sheet Thickness	Weight	Dimensions(LxWxH)
ACLL-12	0.5-1.2	220	1050x570x1020mm
ACLL-15	0.8-1.5	280	1150x600x1100mm
ACLE-12	0.5-1.2	215	1050x570x1020mm
ACLD-12	0.5-1.2	200	1050x570x870mm
ACLA-12	0.5-1.2	200	1050x570x870mm

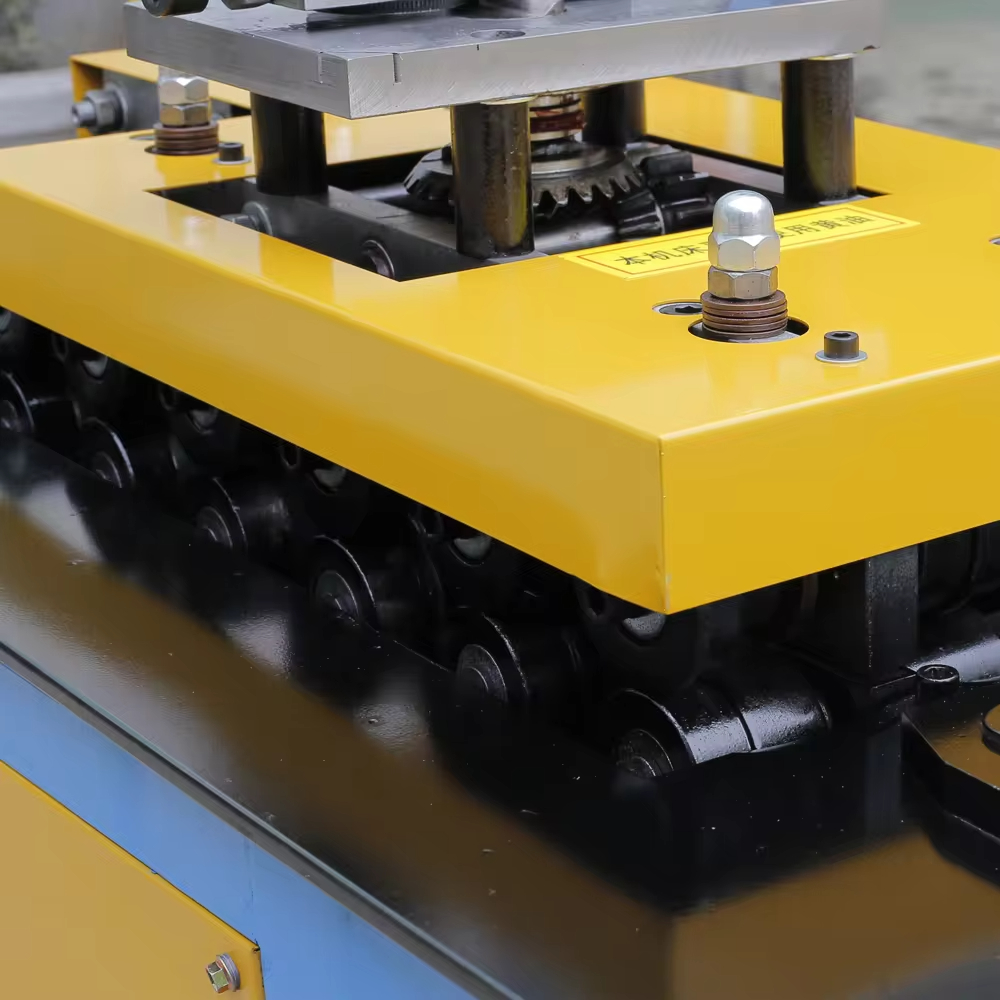

Standardized multi-function machine

The rolling wheel is made of 45# carbon steel, which is processed by oil quenching heat treatment, and its hardness reaches 40-60 degrees. The service life is 2-3 years.

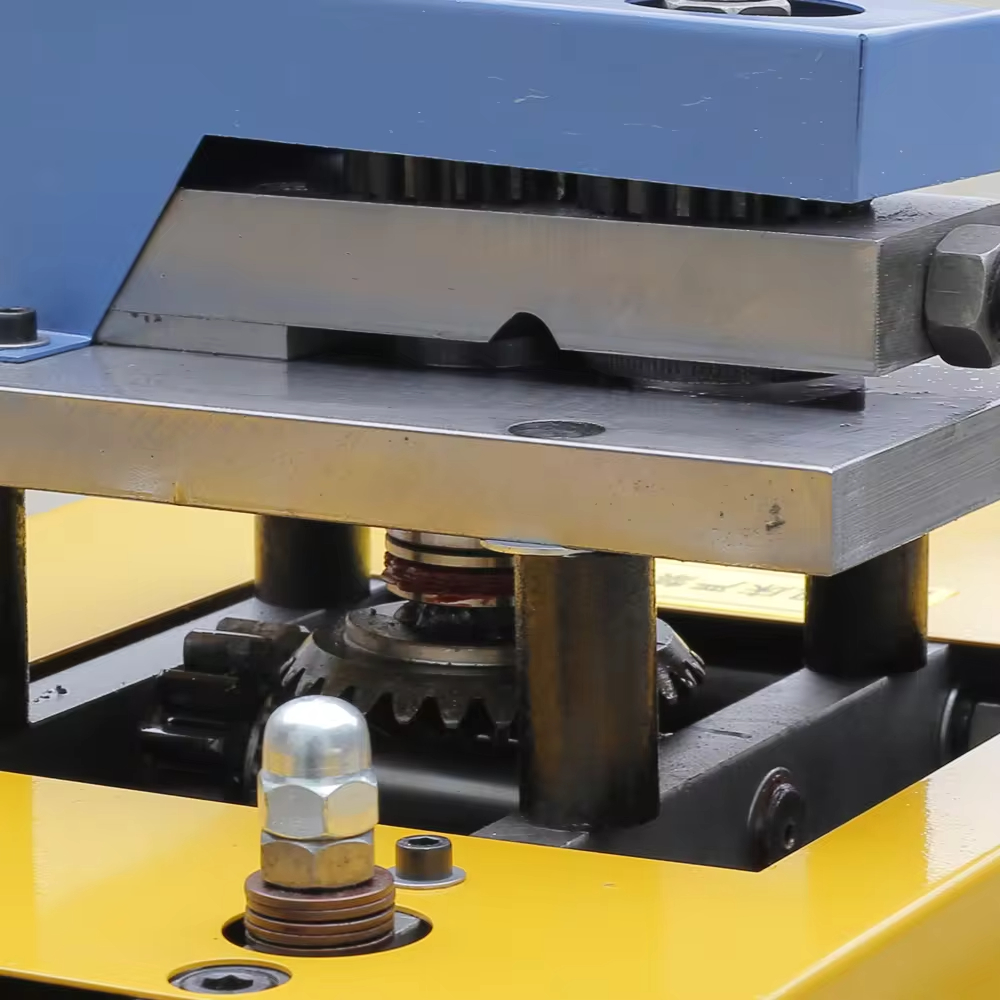

Machine Steel Lock Bearing

The material of the pressure wheel is GCR15 bearing steel, which is processed by vacuum heat treatment After the process is the second time, it will be a small eccentricity, well what? The hardness reaches 55-60 degrees and the service life increases to 3-5 years.

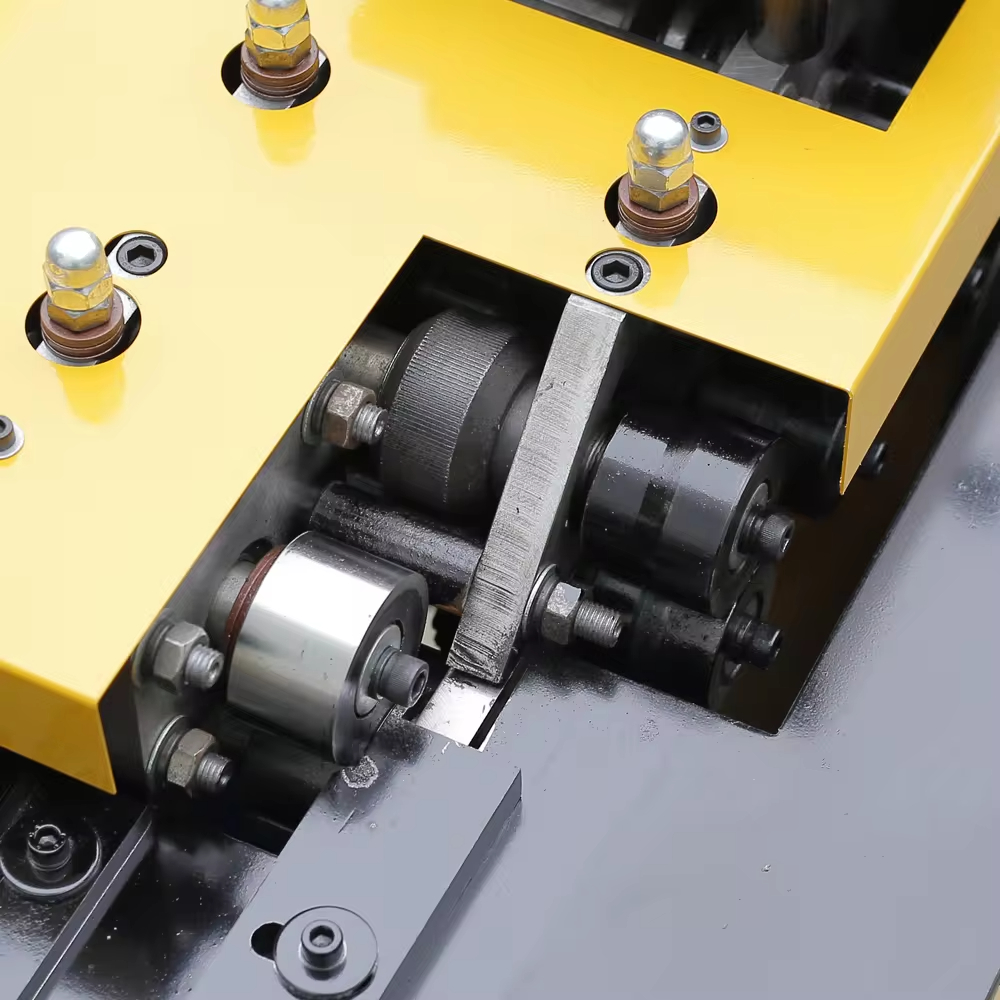

Ruling rectors

The guide ruler material is made of high-quality spring steel with a hardness of 55-60 degrees. It is durable after oil quenching and heat treatment.

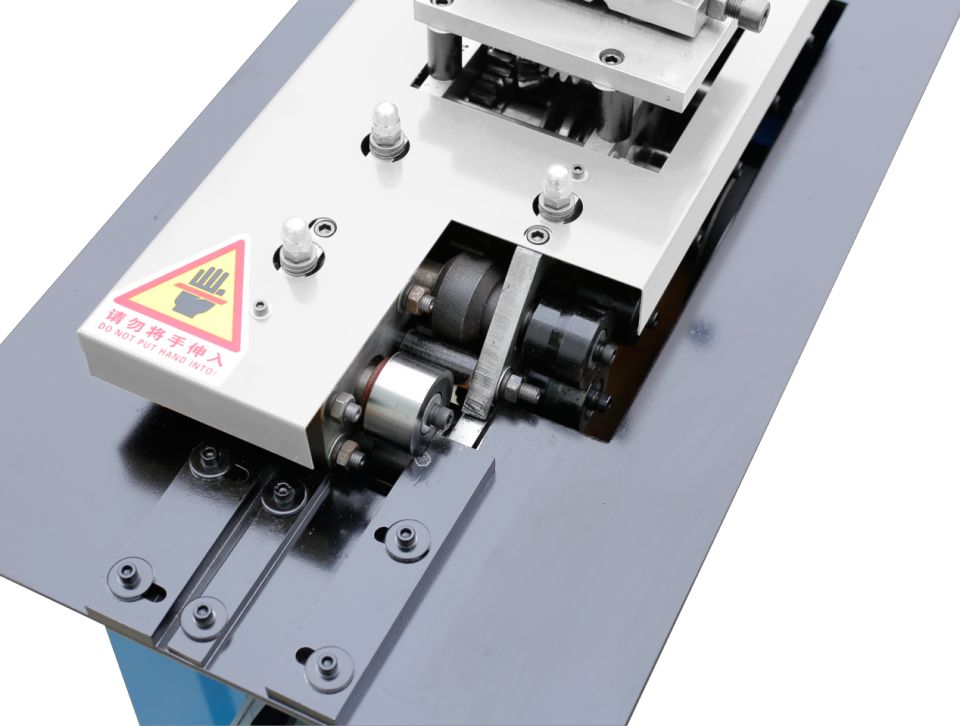

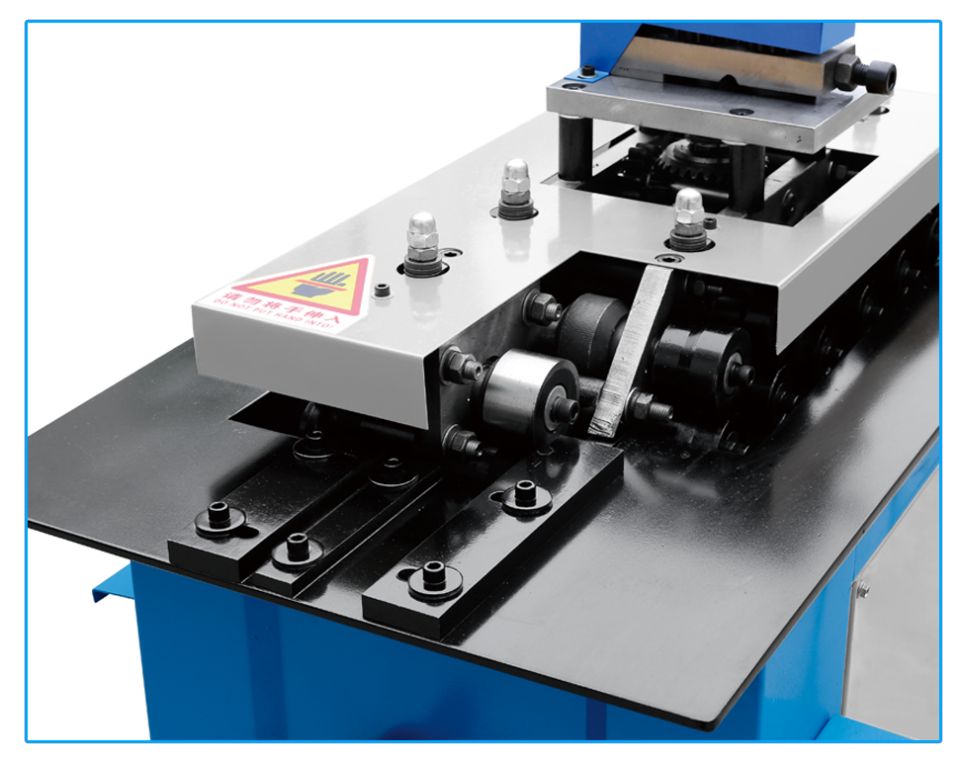

Feeding inlet of nip machine

The feeding port of the ACLPRESS multifunctional nip machine is equipped with leveling rollers that have adjustable clearances. These rollers level the plate while the impact of unevenness on the accuracy of the bite forming.

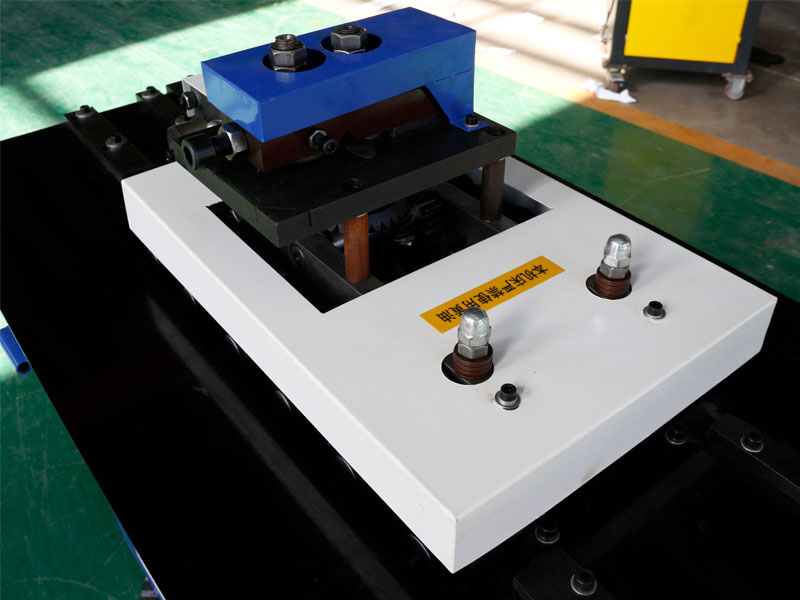

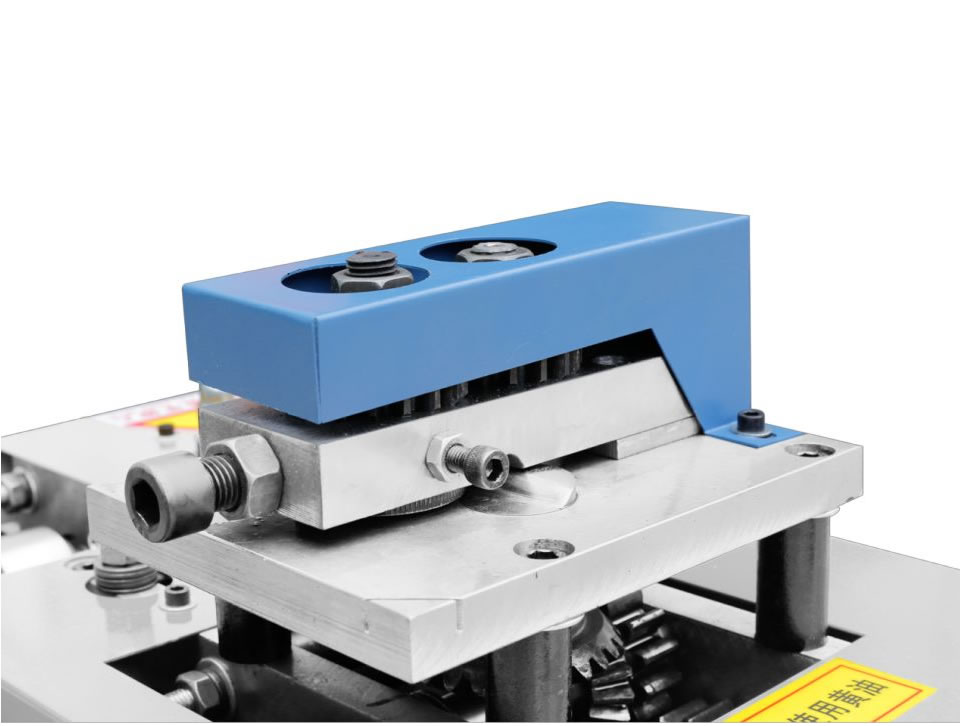

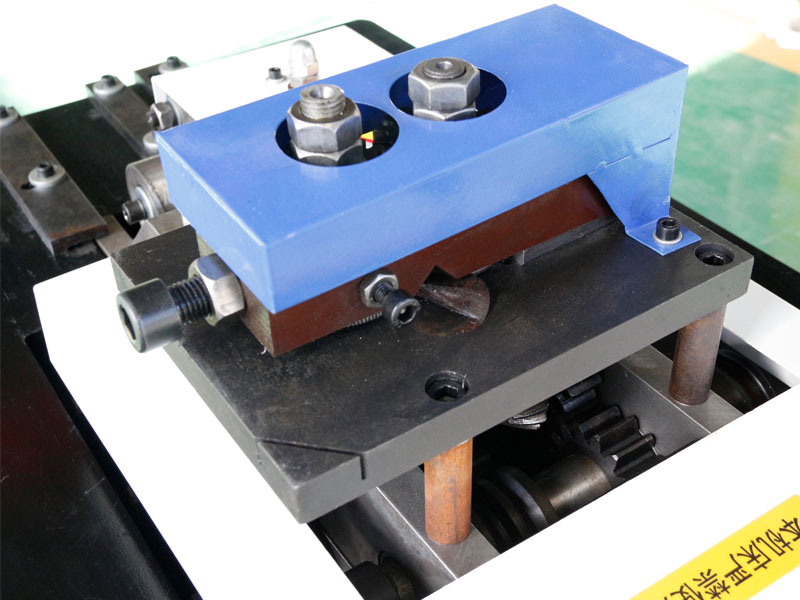

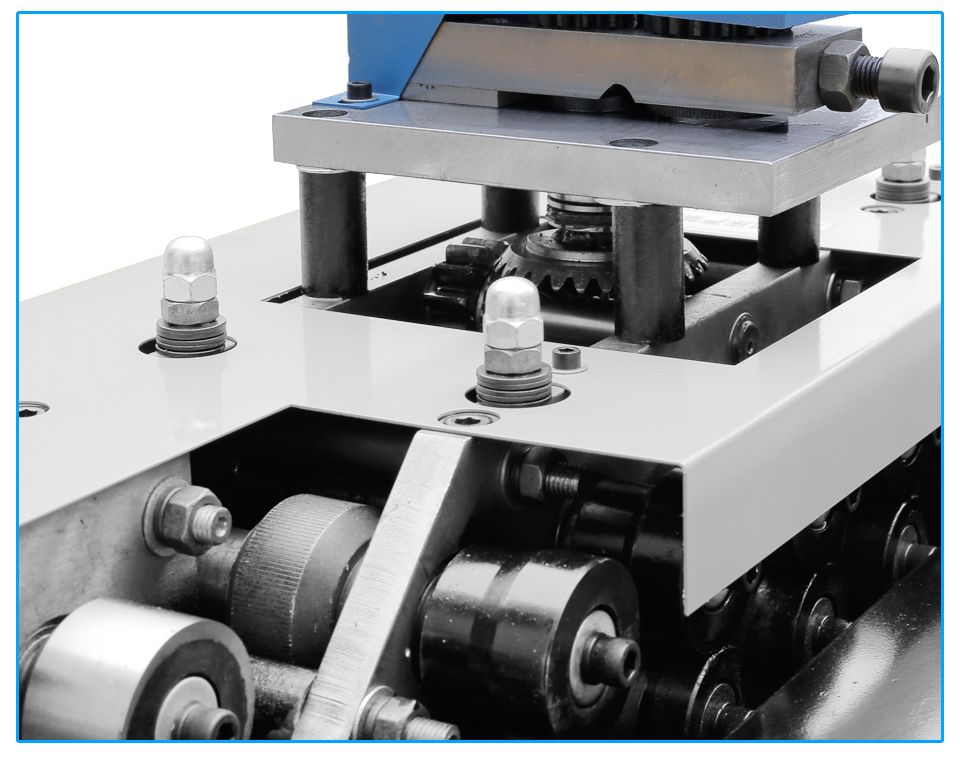

Multifunctional adjustment board

The function switch of the ACLPRESS bite machine can be achieved by adjusting the position of the functional board with screws, which is easy to operate and highly efficient in processing.

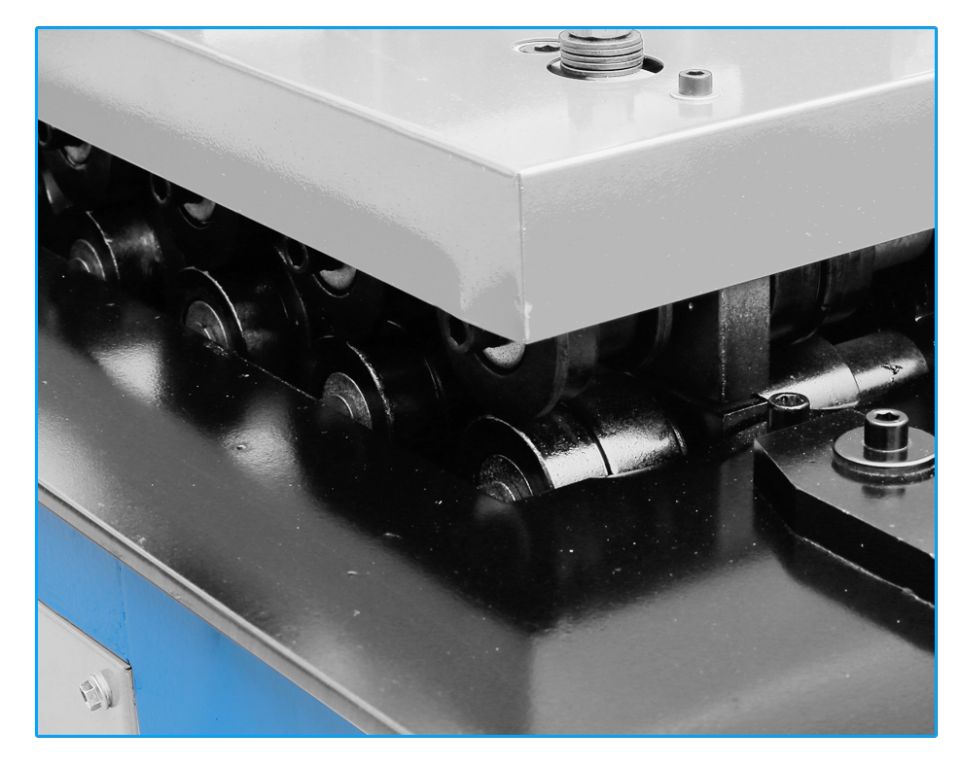

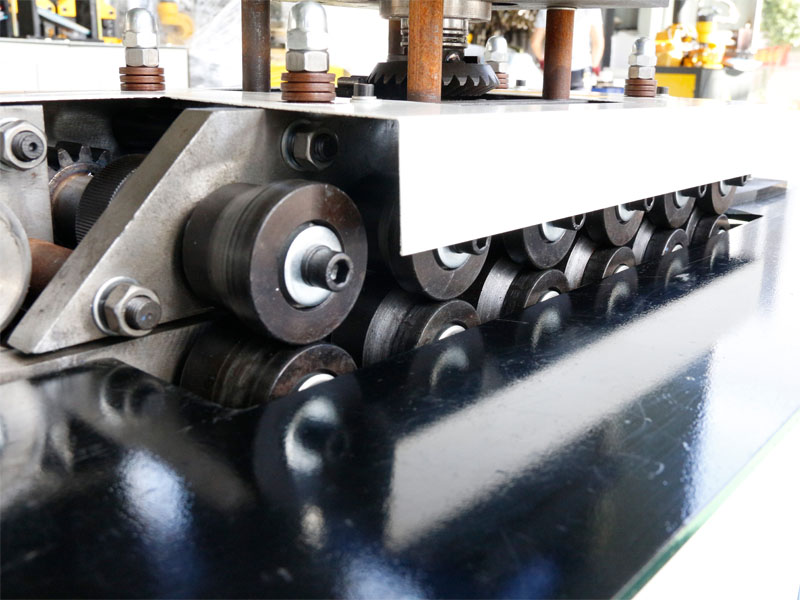

Nip machine rollers

The rolling mill rolls of the aclpress bite machine are made of high-quality wear-resistant alloy, which is heat-treated throughout the body. They have high but suitable hardness and good wear resistance, and the continuous high-load fatigue working strength of the rolls is above 250 hours.

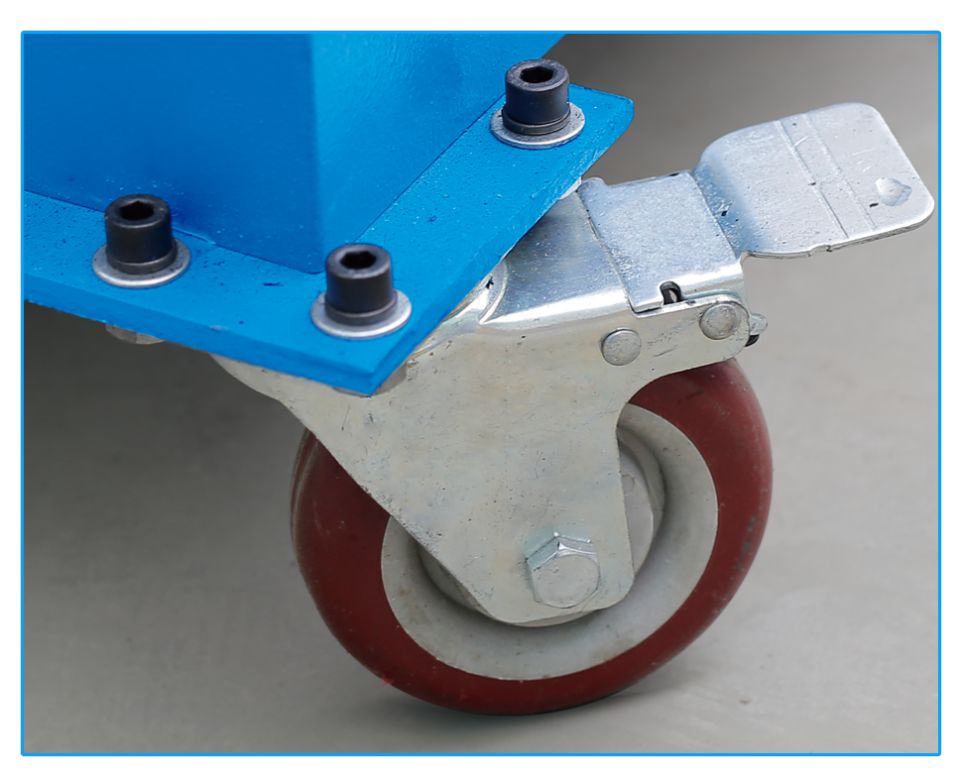

Omnidirectional wheel of nip machine

The ACLPRESS nip machine is equipped with heavy-duty and wear-resistant wheels that are universal and suitable for various complex working environments. It can be smoothly moved by pushing it along.

Model	Sheet thickness mm	Shape	Power kw	Weight kg	Dimensions LWH
SA-12HB	0.5-1.2		1.5	220	1050x570x1020mm
SA-15HB	0.8-1.5		2.2	280	1150x600x1100mm
SA-12B	0.5-1.2		1.5	215	1050x570x1020 mm
SA-12	0.5-1.2		1.5	200	1050x570x870 mm
SA-12C	0.5-1.2		1.5	200	1050x570x870 mm
